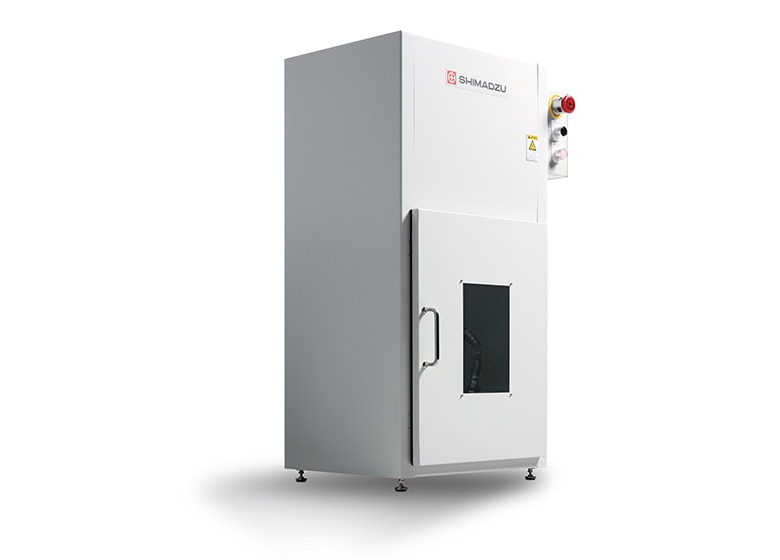

USF-2000A

Ultrasonic Fatigue Testing System

Add Bookmark

USF-2000A

20 kHz Fatigue Testing
Ultra Efficient for Gigacycle Testing
Also for Analyzing Inclusions in Metals

This ultrasonic fatigue testing system achieves a vibration rate of 20 kHz by applying a vibration generated by a Piezoelectric element and amplified by a horn. This not only significantly reduces cycle times, it also helps discover microscopic defects and inclusions in high-strength steel materials, which can cause fatigue fractures at the megacycle level.

Features

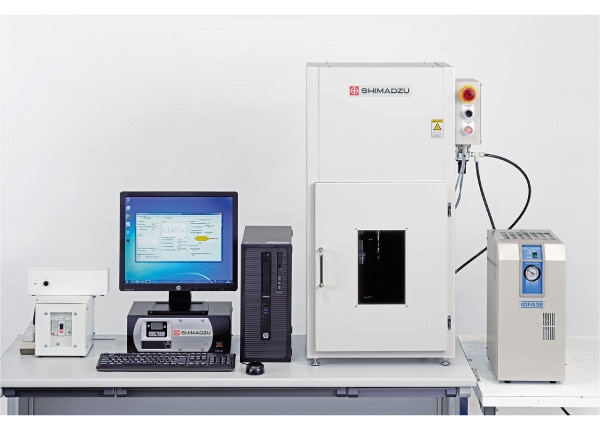

  • Capable of Testing 1000 MPa Class Steel Material
    Capable of Testing 1000 MPa Class Steel Material

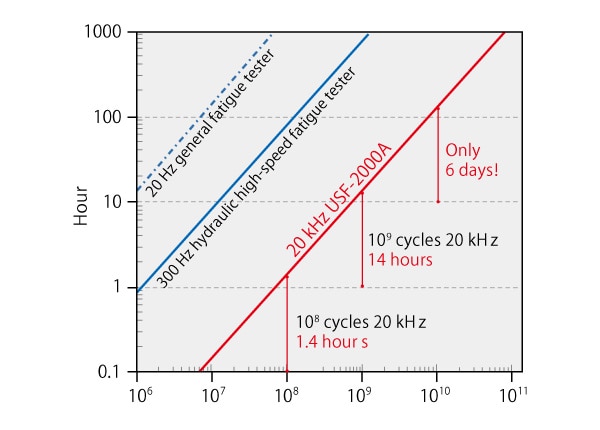

    High stresses can be generated by performing tests at resonance frequencies. With a 20 kHz cycle capacity, this system is able to accelerate fatigue life evaluations of metals and other materials. It is perfect for long service life evaluation of materials or high-speed vibration testing. Use of resonance requires only minimal power consumption.
  • For Analyzing Inclusions in Test Materials
    For Analyzing Inclusions in Test Materials

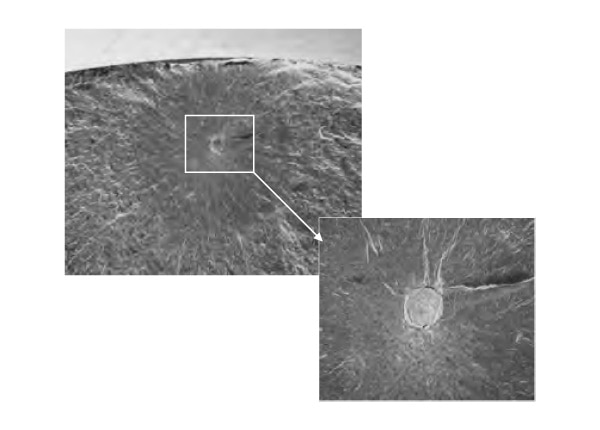

    The efficiency of identifying and analyzing inclusions can be increased dramatically by using an ultrasonic fatigue testing machine to the point of fatigue fracture, which ensures a defect or inclusion will be discovered on the fracture surface.
