iSpect DIA-10

Dynamic Particle Image Analysis System

Add Bookmark

iSpect DIA-10

Comprehensive Particle Characterization



Shimadzu's iSpect DIA-10 Dynamic Image Analyzer combines particle size and image analysis technology to offer complete particle characterization. It can perform particle imaging, size analysis, and foreign object detection, and obtain size distributions and number concentration, in as little as two minutes.

Features

  • iSpect DIA-10
    Reliable Particle Detection System

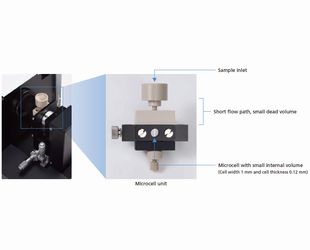

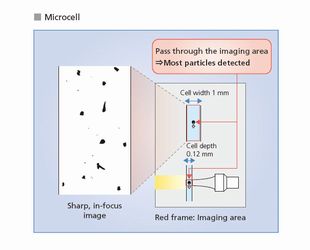

    The system utilizes a microcell and advanced optics to accurately and efficiently detect particles. Using normal lenses, the apparent size of particles can be affected by the depth of the particle relative to the lens. The iSpect DIA-10 uses a telecentric lens that maintains a constant image magnification. This means that no matter where the particle is located in the field of vision, the system will accurately determine the size of the particle. The autofocus function increases the imaging efficiency which makes it possible to accurately detect foreign objects and obtain repeatable number concentration.
  • iSpect DIA-10
    Easy Operation

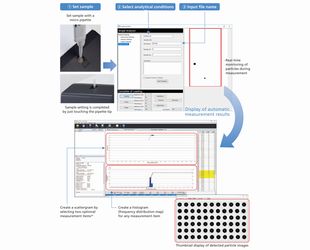

    Measurement results are obtained in three steps. Pump operation and particle imaging are performed automatically according to the analytical conditions selected. In addition, particle images can be simultaneously monitored and measured in real time while the sample flows through the unit.
Learn more
