inspeXio SMX-225CT FPD HR Plus
Microfocus X-Ray CT System
Advanced Operability and Ultimate Image Quality That Overturns Conventional Assumptions inspeXio SMX-225CT FPD HR Plus The inspeXio SMX-225CT FPD HR Plus is a high-performance microfocus X-ray CT system equipped with a Shimadzu microfocus X-ray generator and a large high-resolution flat panel detector. The large detection area, input resolution equivalent to 14 megapixels, and an enhanced high-output microfocus X-ray generator enable CT images with a large field-of-view, high resolution, and high contrast. In addition, the improved HPC inspeXio high-performance computing system processes images faster. These developments make the inspeXio SMX-225CT FPD HR Plus system applicable for researching, developing, or inspecting a wide variety of samples, from composite materials, such as glass fiber reinforced plastic (GFRP) and continuous fiber reinforced thermoplastic laminate (CFRTP) materials to large aluminum die cast parts. *System Configuration and Operating Principle.
System Configuration and Operating Principle

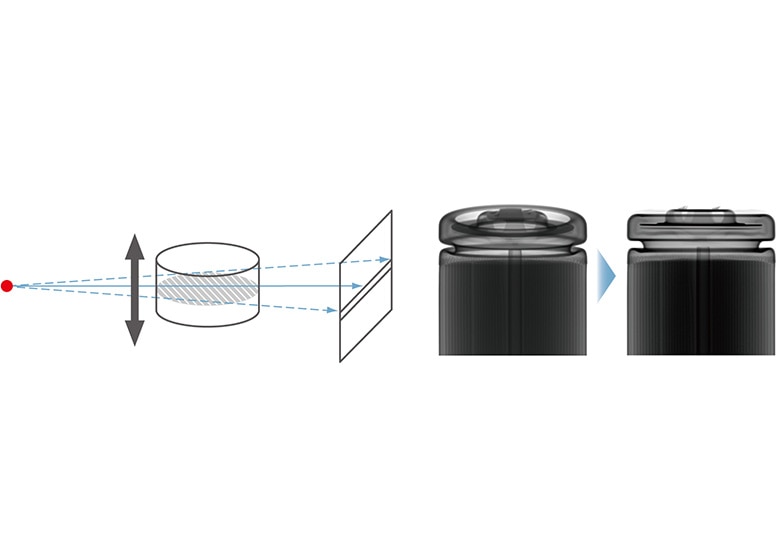

The inspection target (sample) is placed between the X-ray generator and detector, as shown below. Then, the sample is rotated 360 degrees to collect X-ray fluoroscopic data from various angles in order to calculate cross-sectional images.
Features
-

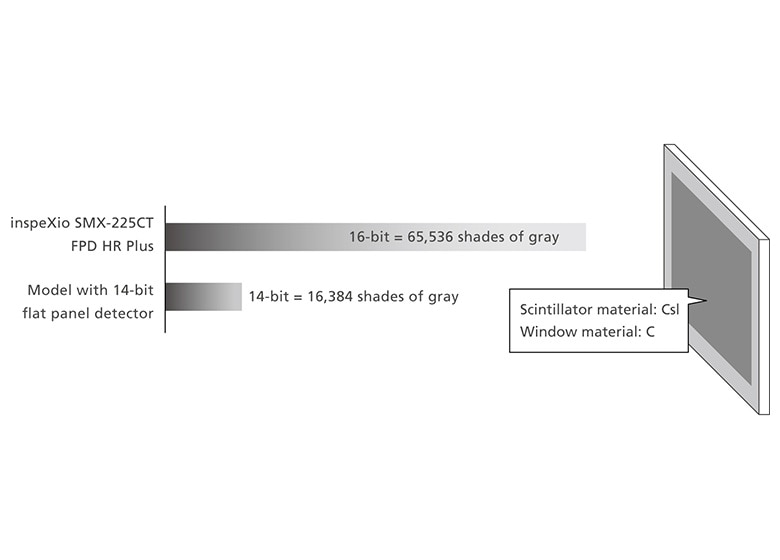

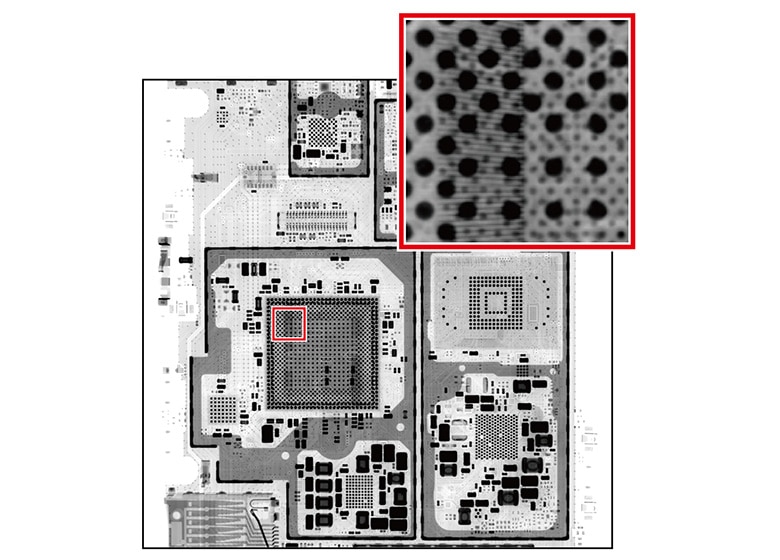

The large high-resolution flat panel detector has an input resolution equivalent to 14 megapixels, which provides a large field-of-view and high resolution
-
Improvements to the Shimadzu-made microfocus X-ray generator and the sensitivity characteristics of the state-of-the-art flat panel detector enable unprecedented high output and image contrast.
-

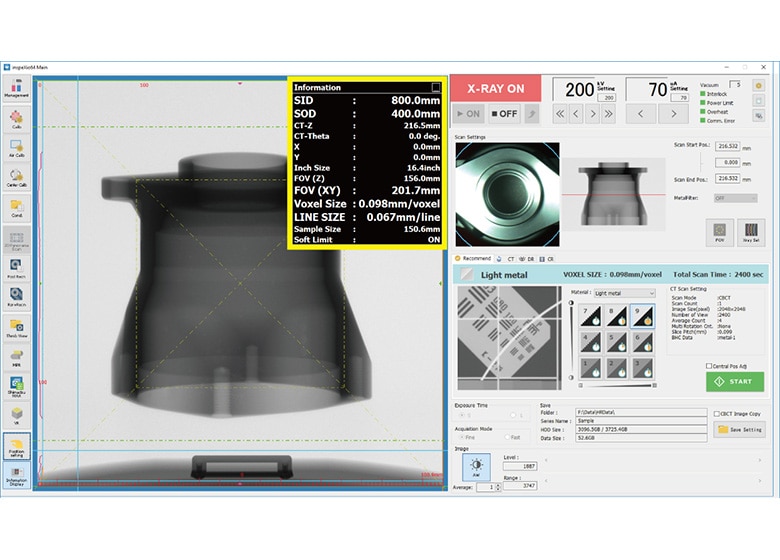

In addition to the automated CT scanning function, which relieves the operator from having to specify parameter settings, the system also includes an improved version of the HPC inspeXio ver. 3.0 high-performance computing system, providing 50 times faster processing speeds.
-
Extended Filament Lifetime
The expected lifetime of filament is extended by 2.5 times by automatically adjusting the current value.
