Aluminum Die Castings

sample

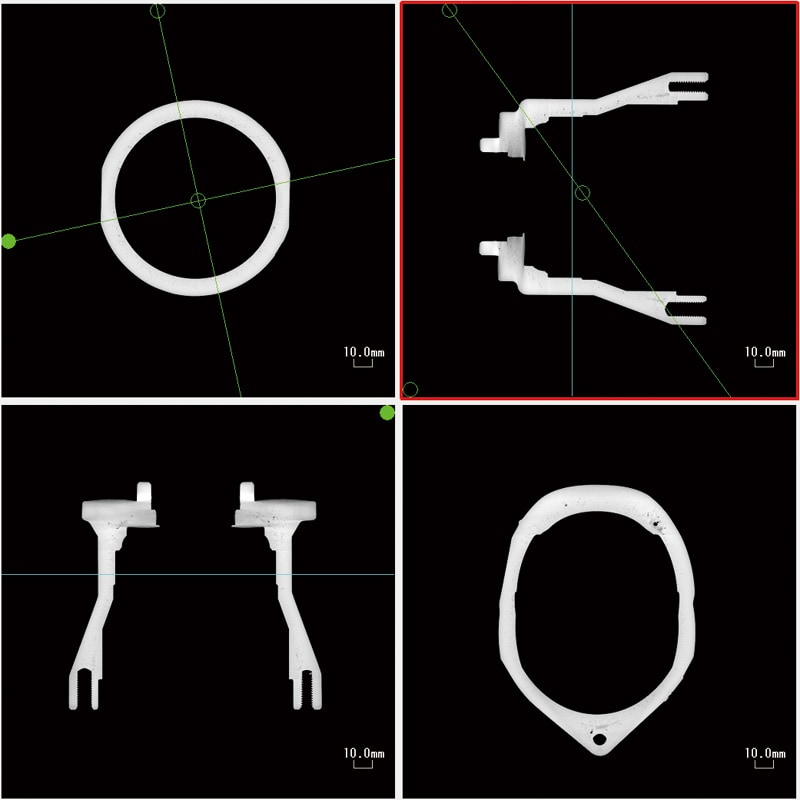

MPR Image
sample

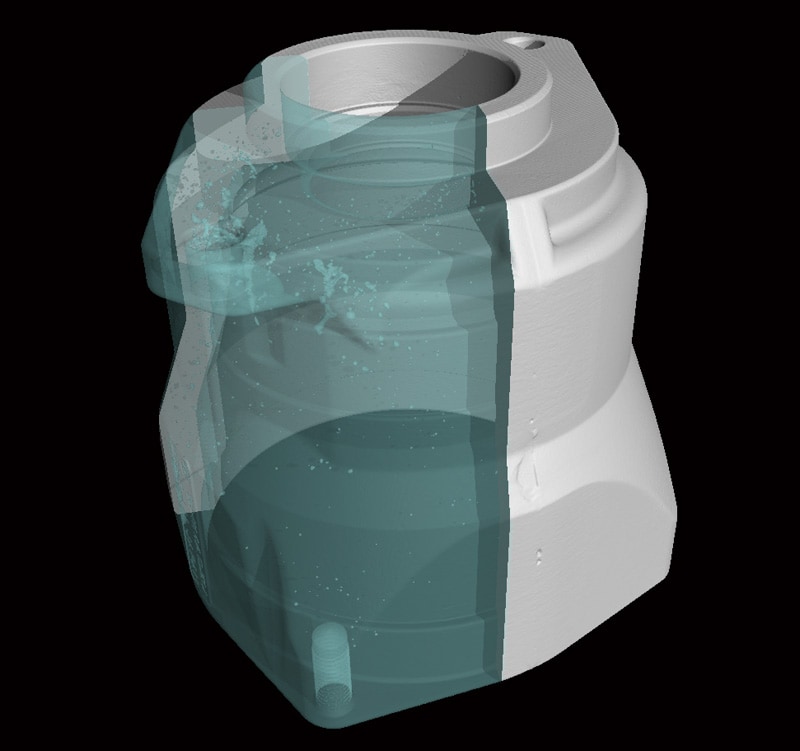

VR Image
sample

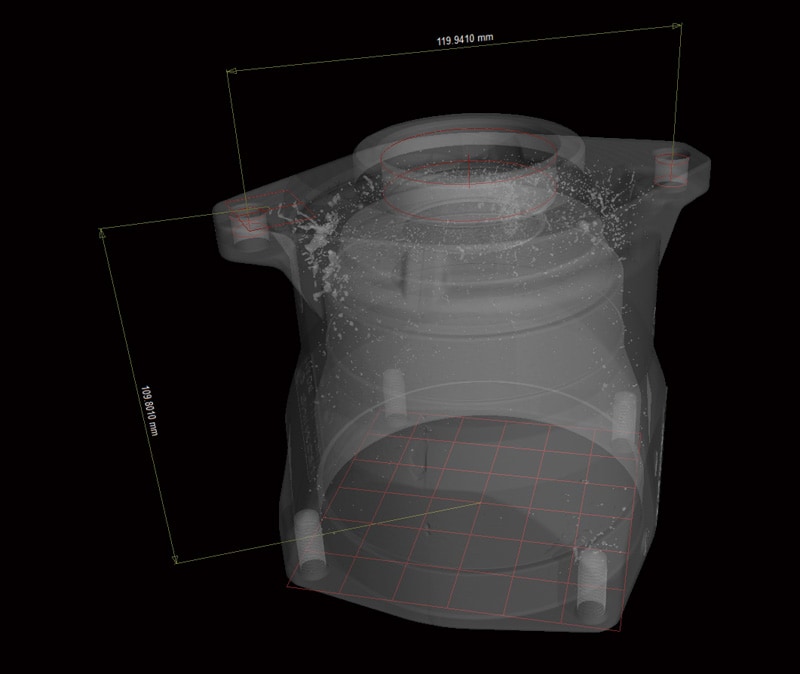

3D Measurement

sample

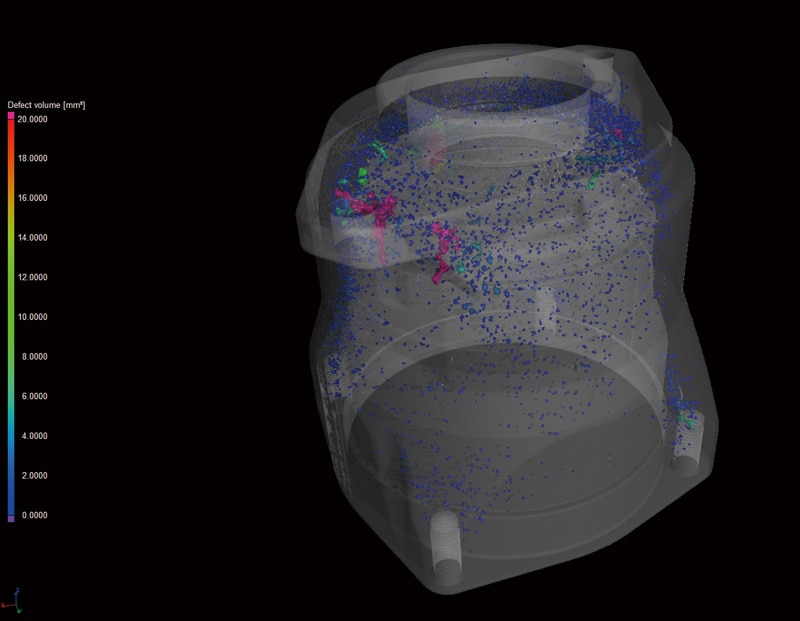

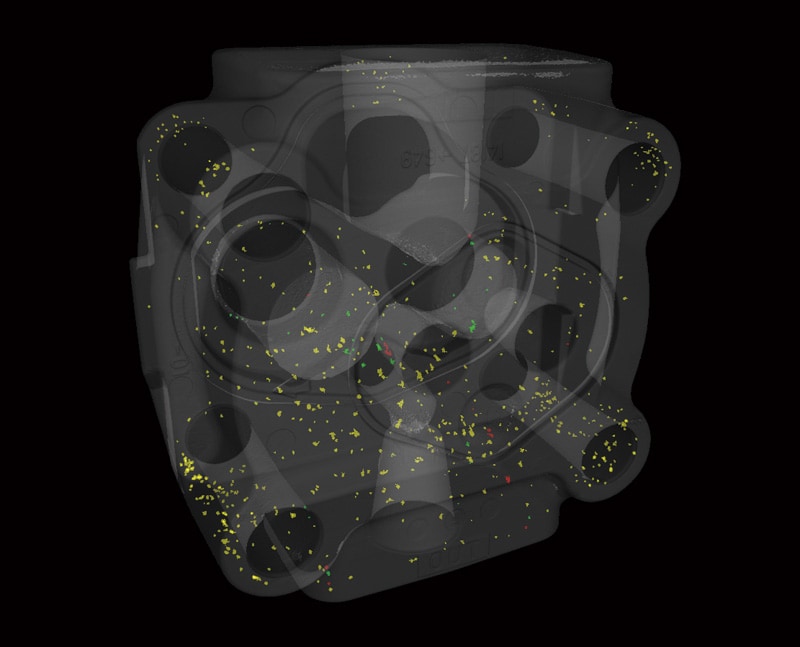

Defect Analysis
sample
Defect Analysis Histogram

Defect analysis identifies voids and displays a color-coded map of the voids based on their volume. It can also display a frequency histogram of scale the void volume and count.

sample

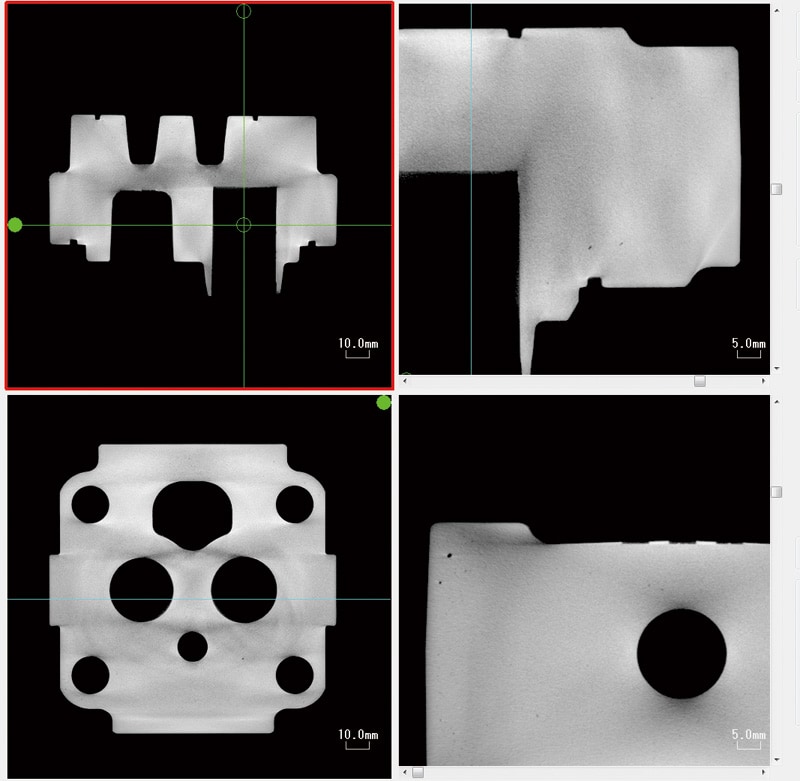

MPR Image　FOV = ø161.5 mm
sample
Defect Analysis


By scanning the die cast part before machining and then specifying the surface after machining (CAD data), the software can determine which voids are removed by machining, which remain internally, and which are exposed on the surface after machining.

● Voids that are removed
● Internal voids
● Voids exposed on the surface


sample

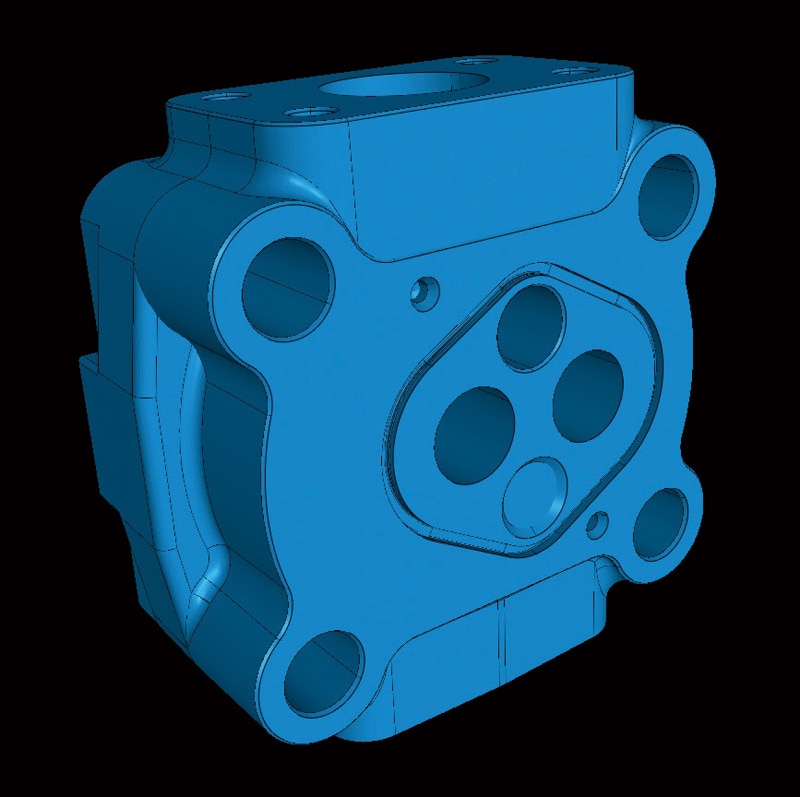

3D CAD
sample

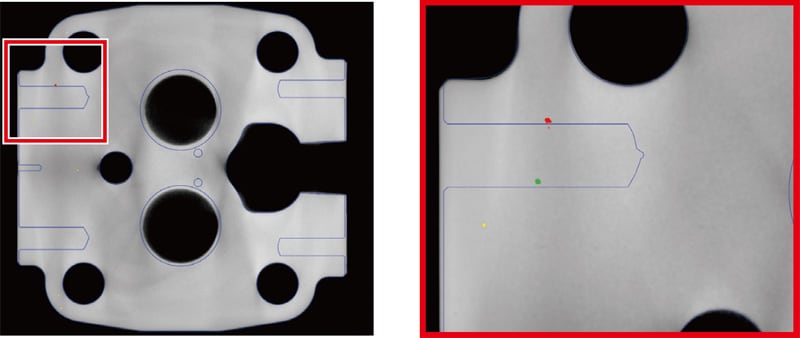

Void Determination Based on Specifying Defect Cross Section and SurfaceBlue line: CAD data analysis after machining


GFRP(Glass Fiber Reinforced Plastic)

sample

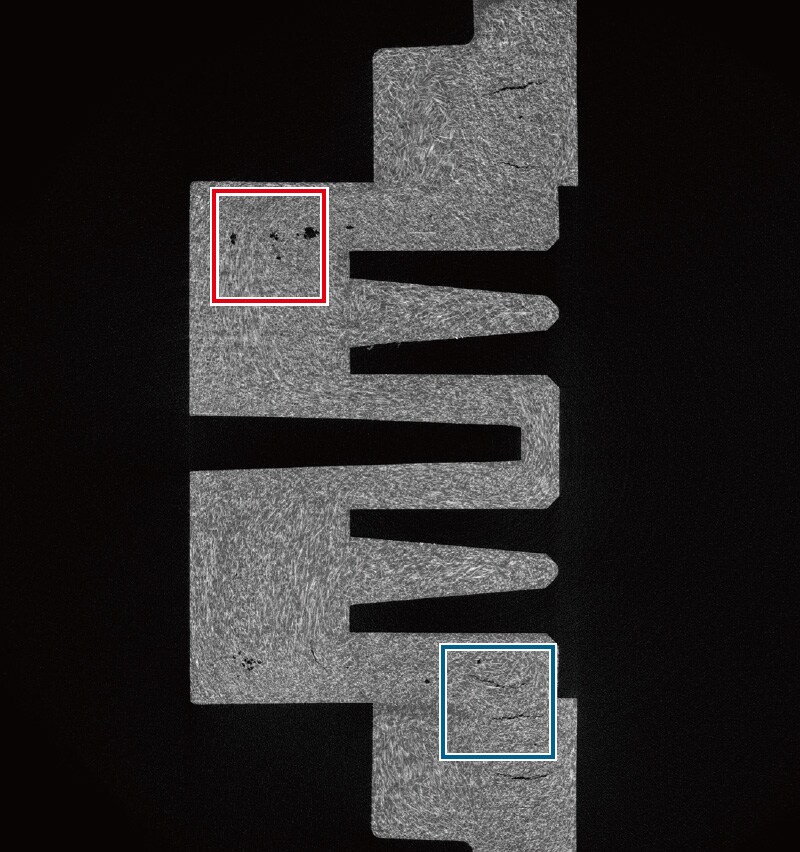

Cross Sectional Image FOV = ø20 mm
sample

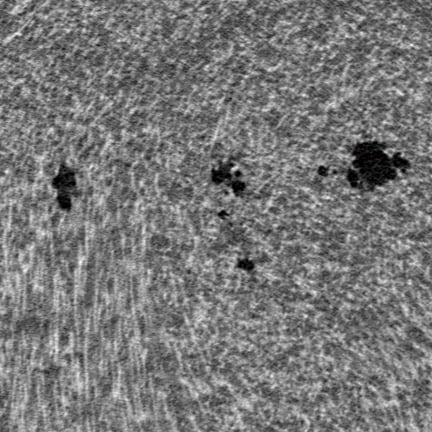

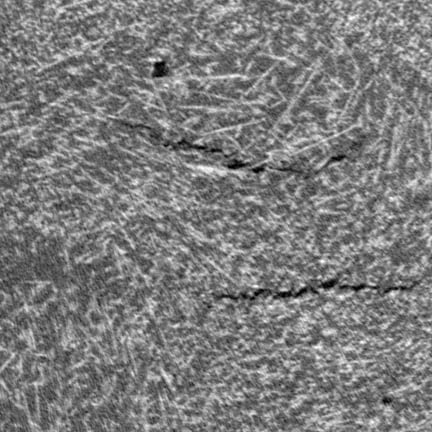

Cross Sectional Image (enlarged view)
sample
Cross Sectional Image (enlarged view)

sample

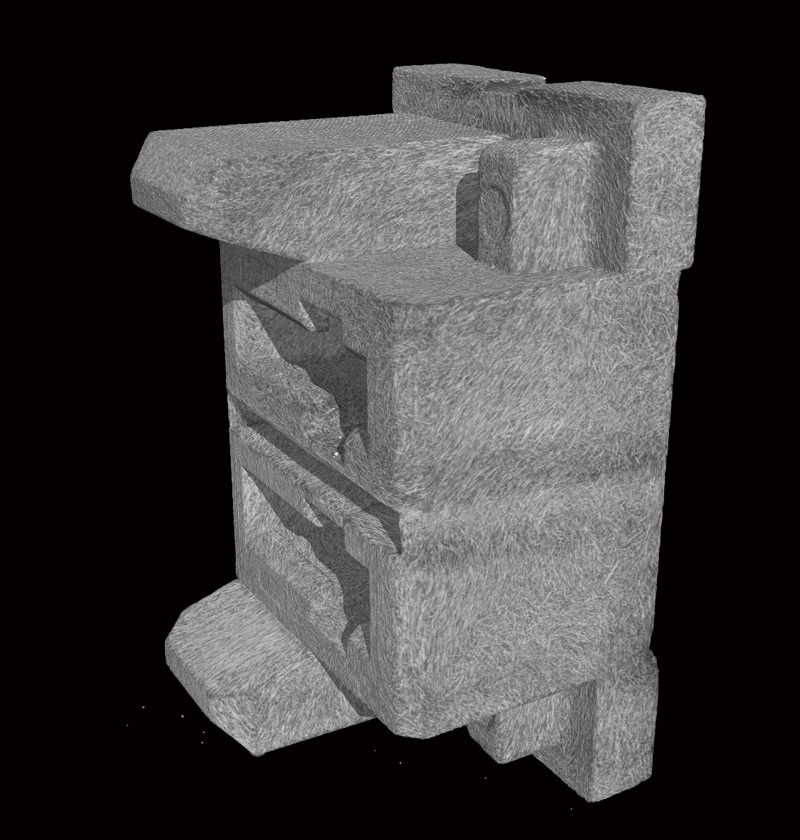

VR Image
sample

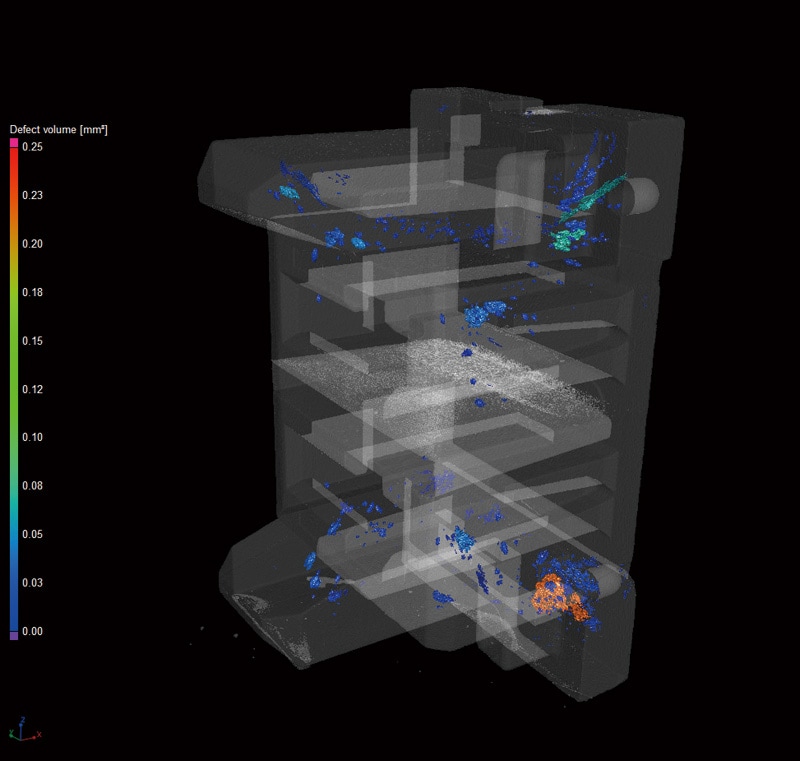

Defect Analysis
sample

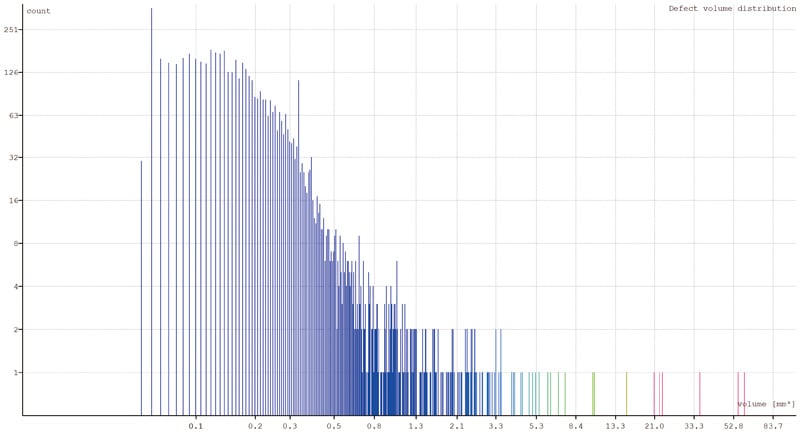

Defect Analysis Histogram

sample
sample

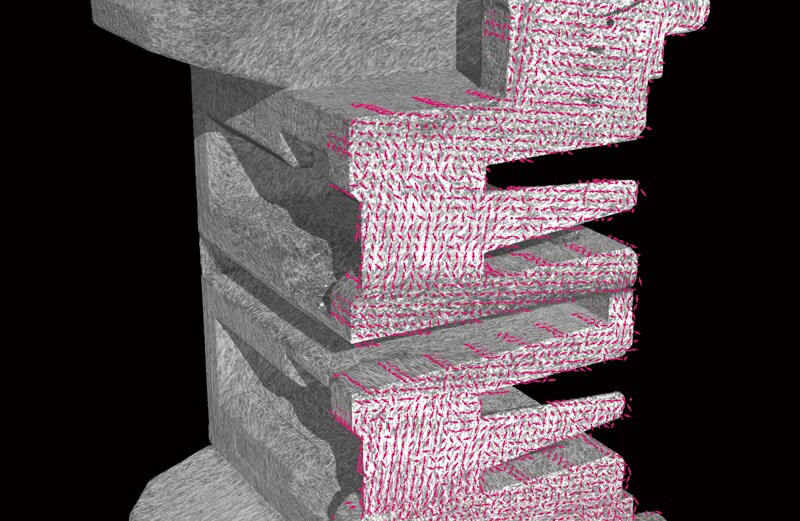

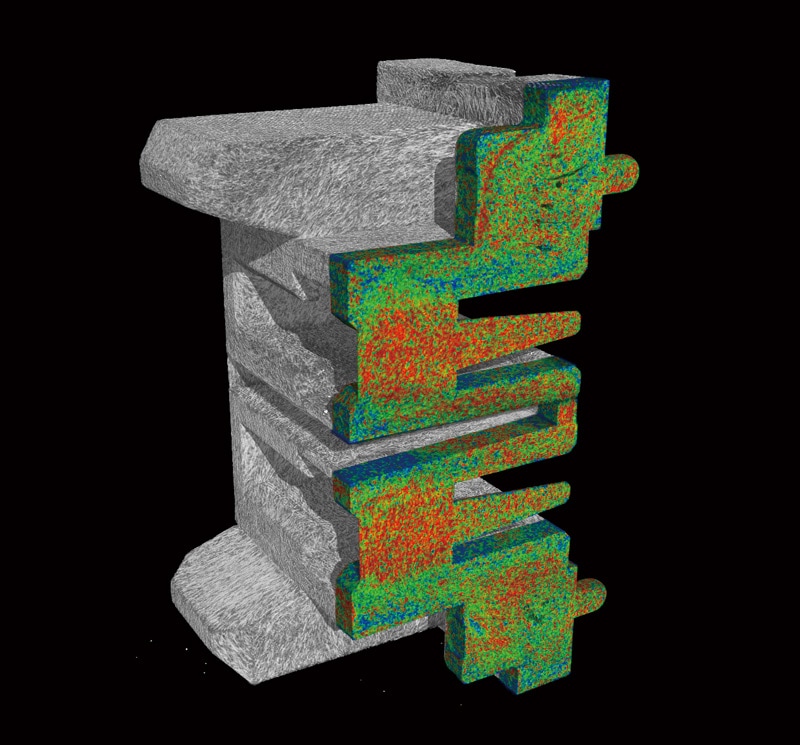

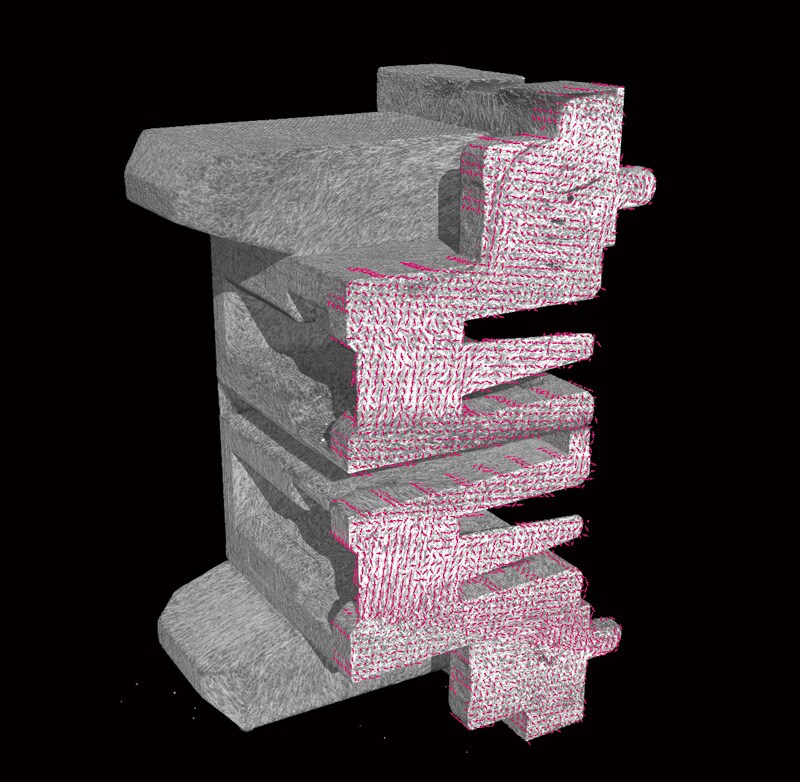

Fiber Orientation Analysis
sample
Fiber orientation analysis can display a color-coded map of filler orientation. Needles can also be displayed based on the orientation.


CFRTP (Continuous Fiber Reinforced Thermoplastic Laminate)

sample

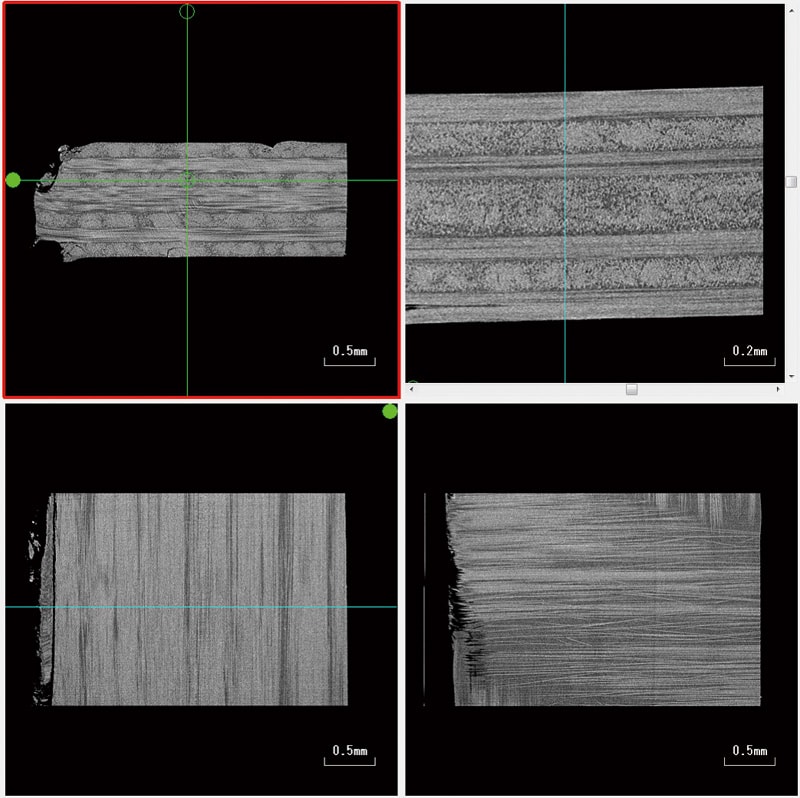

MPR Image FOV = ø3.9 mm
sample
Oblique Image
sample

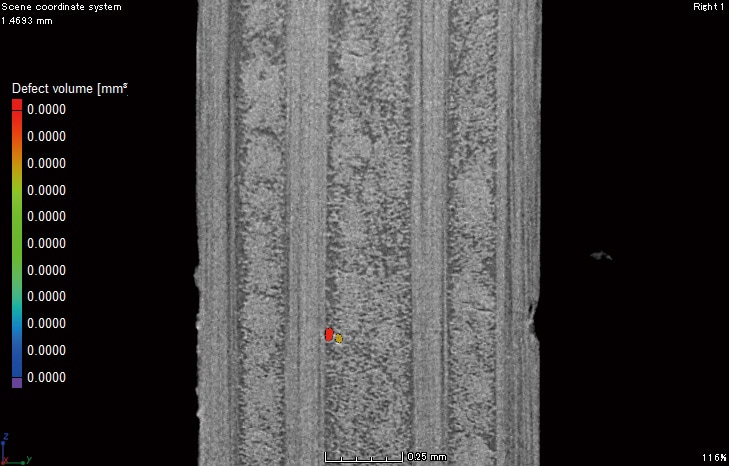

Defect Analysis

sample

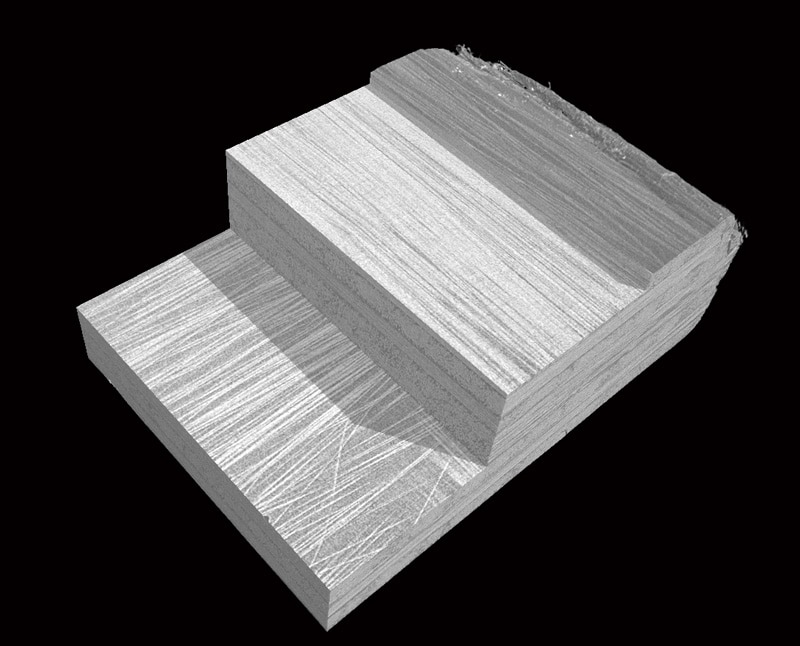

VR Image
sample
Fiber Orientation Analysis

Provided by Ehime University



BGA (Ball Grid Array)

sample
MPR Image FOV = ø5 mm
sample
VR Image

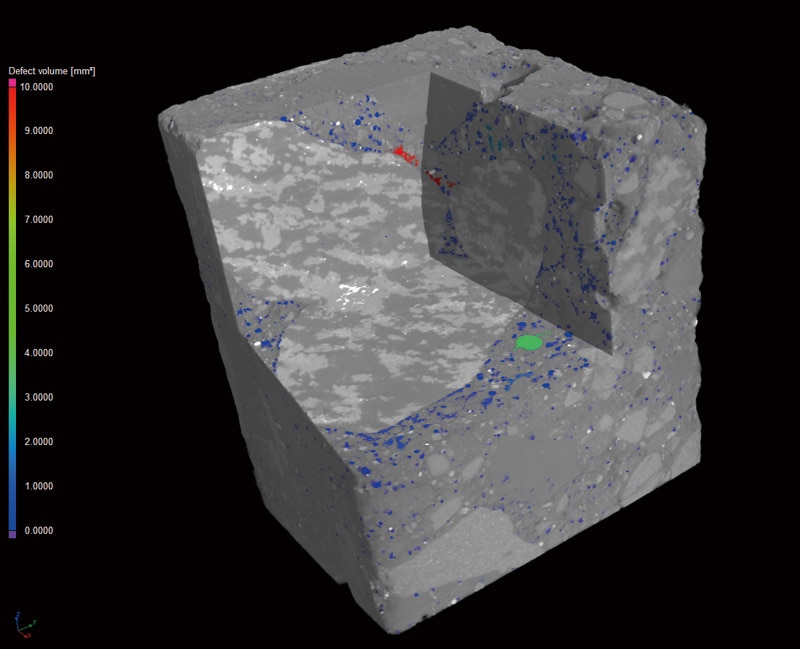

Concrete

sample

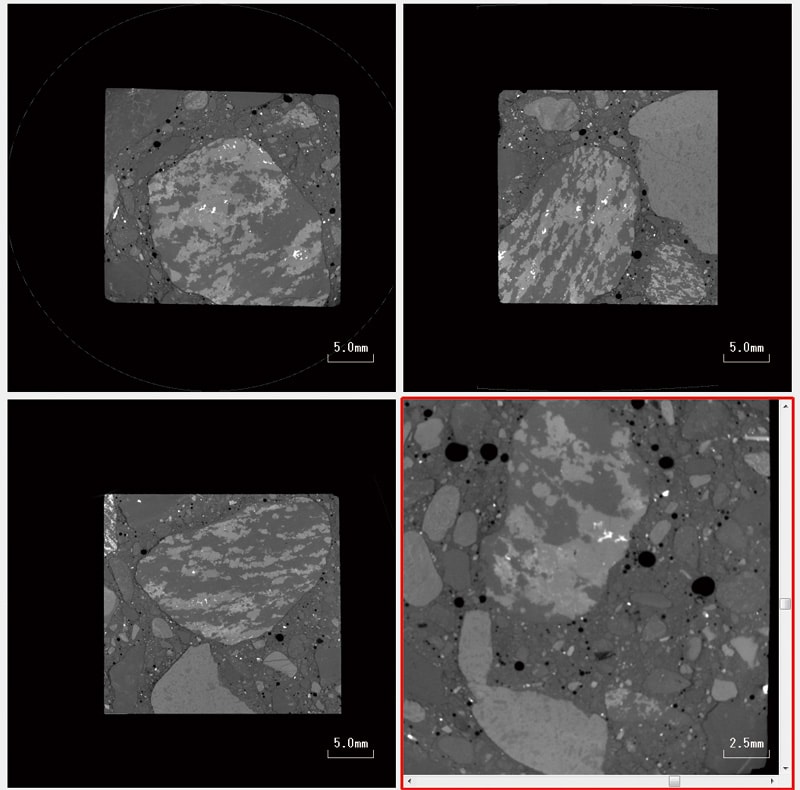

MPR Image FOV = ø42 mm
sample

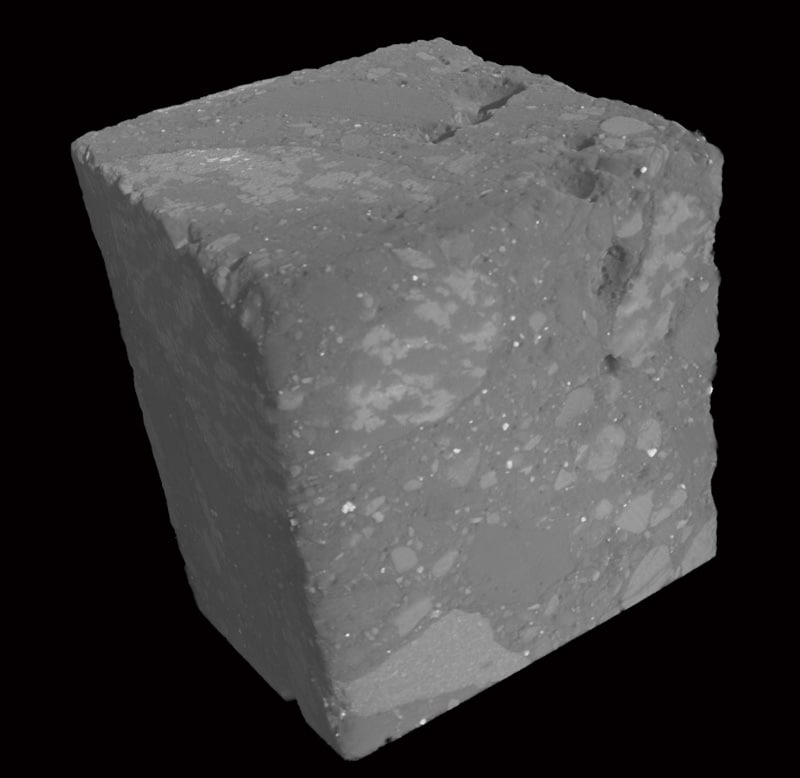

VR Image
sample
Provided by Emeritus Professor Moriyoshi at Hokkaido University


Lithium-Ion Rechargeable Battery

sample

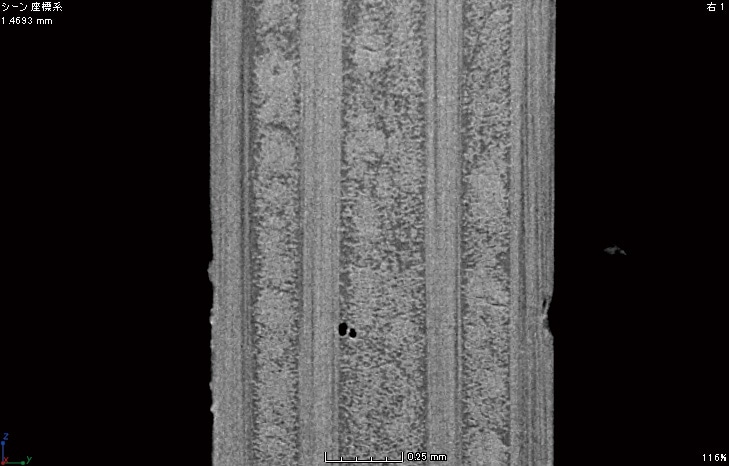

Cross Sectional Image FOV = ø18.4 mm
sample
Oblique Image
sample
VR Image


Rectangular Lithium Polymer Battery (for Smartphones)

sample


Circuit Board

sample
MPR Image FOV = ø 4.4 mm
sample
VR Image


Mouse fetus

sample
MPR Image FOV = ø 13.7 mm
sample
VR Image

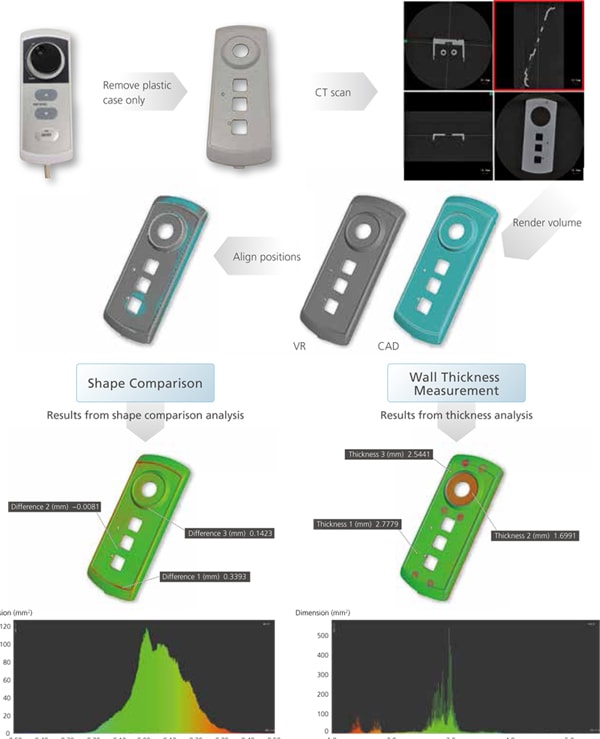

Analysis Using PointMaster Reverse Engineering Software

The software can align CT data with 3D-CAD data, calculate the distance between the boundary surface defined in the CT data and the corresponding 3D-CAD data, and display a color-coded map based on such differences.

For inquiries about the absorbed dose to samples such as semiconductors, please contact here.
