TRAPEZIUM X

Material Testing Software

ENQUIRE NOW

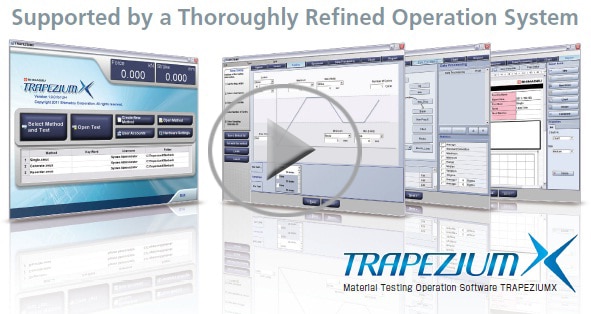

Windows 10 compatible TRAPEZIUM X can carry out various tests ranging from simple test control to complex custom-made patterns, using the industry's first data search and preview function, free layout reports, visual wizard settings, quick panel, and quick conditions lists.

Features

Enables Intuitive Operation

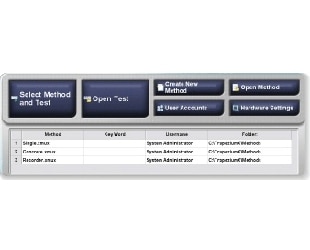

Search files and select parameters quickly by simply touching the screen to perform consecutive tests efficiently.
Data Processing Settings Screen
(Metal is selected as the material on the screen, but rubber and plastic are also available.)
Screen for setting specimen quantity and dimensions
Quickly Obtain the Data Needed

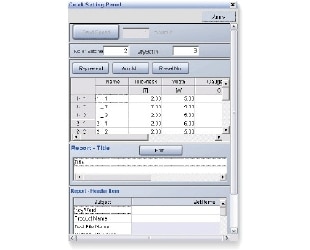

The Quick Setting Panel enables quickly entering speed, dimensions, report information, and other settings directly into the Main screen.
More advanced navigation, with a teaching function
Retest, Add test, and File merge functions
More Attractive Reports Increase Persuasiveness

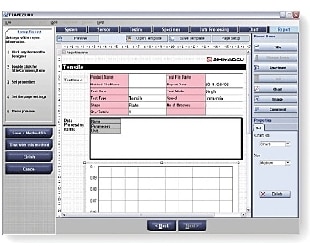

Create expressive reports with freely configurable layouts and a wide selection of web-compatible output functions

Learn more

Latest Webinar

April 26, 2024

Precision Universal Testing Machine Introductory Course (3) Test condition and results

Material Testing

Material testing is often carried out with reference to conditions in accordance with various industrial standards. Industrial standards cover a wide range of topics, from definitions of various materials and terminology to test equipment and test methods. Industrial standards describe the conditions required to perform strength tests, such as test speed, specimen shape and gauge length, and whether or not an extensometer is used. These standards may have different requirements for testing the same material. This webinar explains how to set up test conditions according to the various standards and how to read the data from the test results.
