DTG-60 Series

Add Bookmark

TG/DTA Simultaneous Measuring Instrument

DTG-60 (left) and DTG-60 with autosampler (right)

DTG-60 (left) and DTG-60A (right)

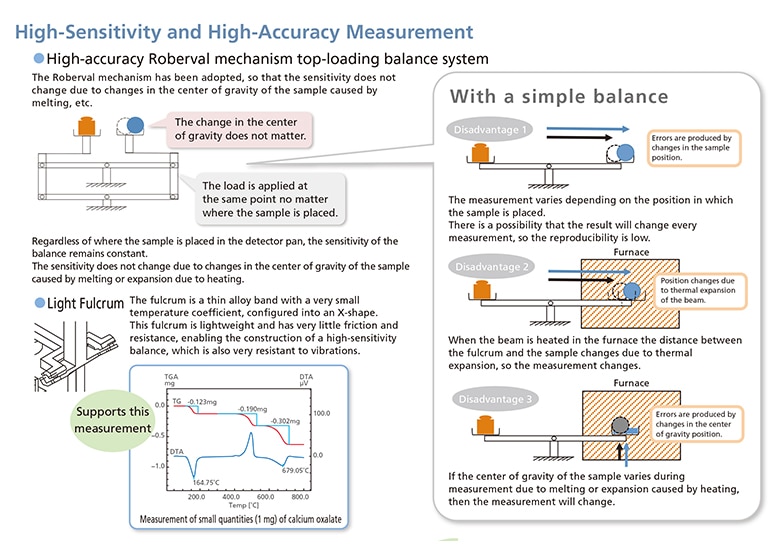

This instrument varies the sample temperature in accordance with a program and simultaneously measures the change in mass of the sample (TG) and the temperature difference between the sample and a standard substance (DTA). An analytical balance mechanism (Roberval mechanism) offers high reproducibility and allows worry-free operation even for measuring sample weights. Two models are available for different maximum measurement temperature requirements-the DTG-60 (max. 1,100 °C) and the DTG-60H (max. 1,500 °C). Corresponding DTG-60A and DTG-60AH models with a built-in autosampler are also available to automatically measure up to 24 samples.





Features

Learn more
