WingSALD II

WingSALD II Data Processing Software for SALD Series

ENQUIRE NOW

WingSALD Framework (WFW) In pursuit of an easy-to-use user interface, we fundamentally reviewed the construction of software. This led to the development of an original user interface environment that we have called the "WingSALD Framework (WFW). " By adopting this framework, which enables greater freedom with software design, we have created a user interface that offers ease of use in a way never seen before and that meets the needs of a diverse range of applications.

Features

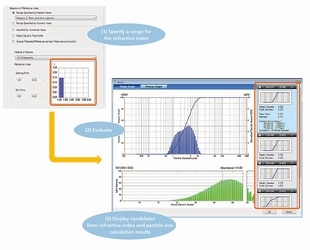

Automatic Refractive Index Calculation Function Eliminates Selecting Refractive Indices

Selecting a refractive index was an unavoidable part of using the laser diffraction method, where generally a published value was entered, but such values were not necessarily appropriate, considering the effects of particle composition and shape. Therefore, tedious trial-and-error processes were used to select refractive indices.

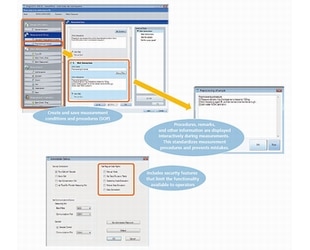

Measurement Assistant Function Allows Preparing an SOP to Ensure Measurements Are Always Performed Using the Same Conditions and Procedures

Creating, saving, and sharing measurement conditions and procedures, including pretreatment methods and conditions, ensures measurements are performed using the same conditions and procedures, even if performed by a different operator or at a different location or plant...
Evaluates Measurement Data from Multiple Facets

–Extensive Assortment of Data Analysis Applications Included Standard

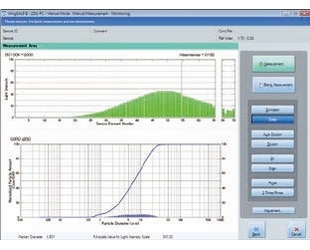

Evaluation of Scattering Angle
Graphs the components of scattered light intensity at each angle. This takes advantage of the features of the highly-integrated photodiode array to allow evaluating the low-angle scattered light with high resolution.

Learn more
