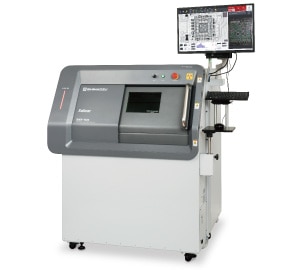

Xslicer SMX-1010/1020

Microfocus X-Ray Inspection System

ENQUIRE NOW

The Xslicer SMX-1010/1020 is a vertical emission X-ray system equipped with 90 kV microfocus X-ray generator and a high-resolution flat panel detector. Image quality has been significantly improved over the previous model (SMX-1000 Plus), and Shimadzu’ s renowned operability has advanced even further. In addition to operability improvements, the stage movement speed and detector acquisition speed have also increased, significantly shortening inspection times. The inspection process is now more efficient. The workflow has also been simplified for the CT unit (optionally available), and operability has been improved. With the Xslicer SMX-1010/1020, everything from X-ray fluoroscopic inspections of surface mounted circuit boards, sensors, and harnesses to 3D defect analysis using CT can be accomplished with a single unit.

Features

High Image Quality Exceeding the Level of General-Purpose Models

Top class high-resolution detector + unique image processing
The system is equipped with a top class 3 megapixel high-resolution detector (SMX-1020), enabling high-resolution observations with a wide field of view.
Unique image processing (High Dynamic Range processing) is also included as standard. Images with the optimal contrast are obtained with a single scan, even when samples differ in thickness and material properties, thereby improving the visibility
of voids and other defects.
Software Significantly Shortens Inspection Times

Operating sequence automation + operating time reduction
Operability is significantly improved by the latest software. The sequence from sample replacement to observation has been simplified, so X-ray fluoroscopic inspections can start a mere 5 seconds after sample replacement.
The inspection tact time has been significantly shortened thanks to faster detector acquisition and stage movements.
Diverse Functions Provide 3D Analysis with a Single Unit

VCT functions that substantially improve operability + easy measurement functions
Using the optional CT functions, not only fluoroscopic inspections but also 3D analyses are available. The calibration process has been automated, so CT imaging is easy for anyone. In addition, with the panoramic imaging function, up to 32 megapixel X-ray fluoroscopic images can be obtained, enabling the inspection of circuit boards and other large samples in their entirety in a single frame.
