i-Series Method Transfer System

ENQUIRE NOW

Enables Both HPLC and UHPLC Analysis

The i-Series Method Transfer System (MT system) enables both conventional analysis via its high compatibility with existing LC systems and rapid analysis via high-speed methods.In pharmaceutical development, a single integrated system allows process synthesis screening analysis for synthetic substances in the UHPLC flow line, and impurity content identification in the HPLC flow line.

Analysis results from LC systems in the same laboratory may differ, even with the same method, due to differences in the system delay volumes of these systems. The i-Series MT system demonstrates outstanding reproducibility between various LC systems with different system delay volumes, simplifying method transfer between instruments.

Further more, with the i-Series MT system the process of migrating from UHPLC to HPLC or from HPLC to UHPLC can be accomplished using a single system.

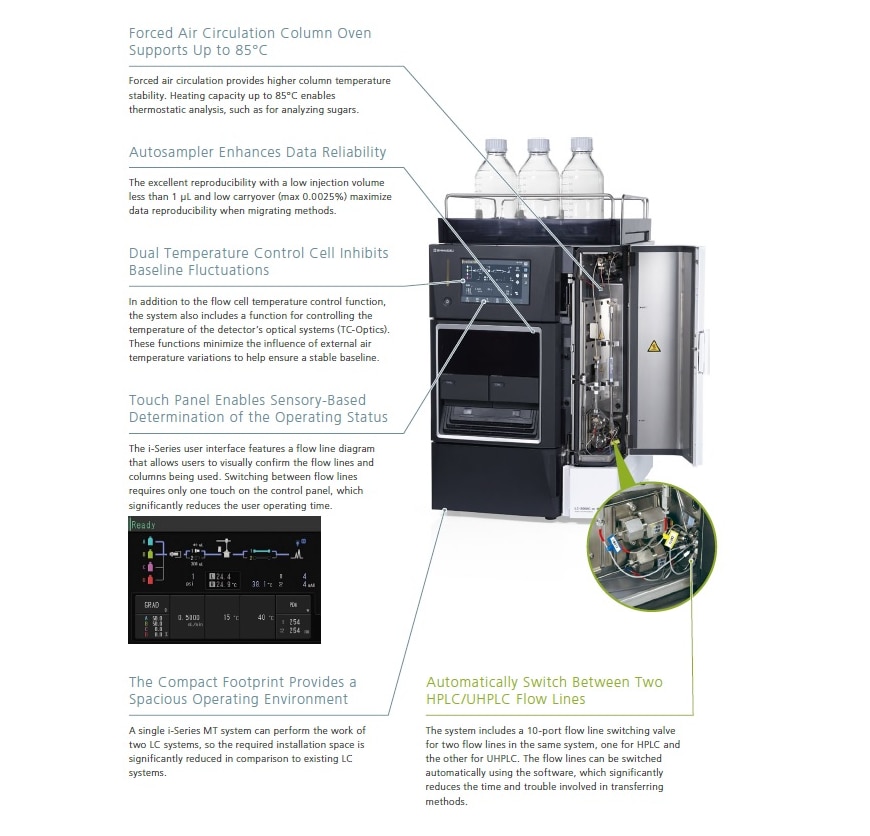

The i-Series MT system is based on the same user-friendly i-Series, but maximizes performance and reliability for migrating and transferring customer methods.

Features

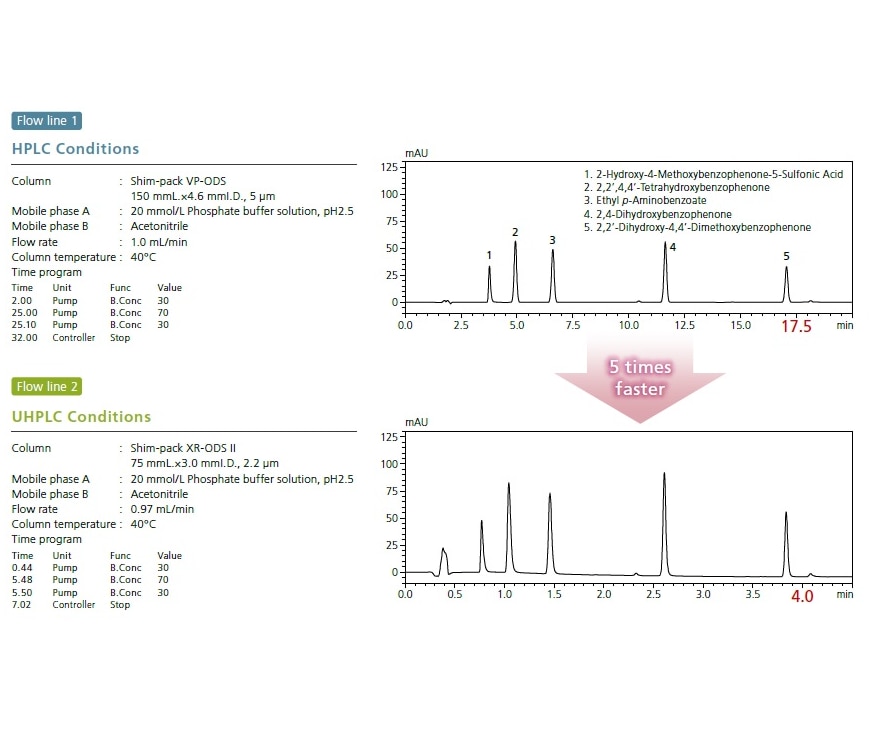

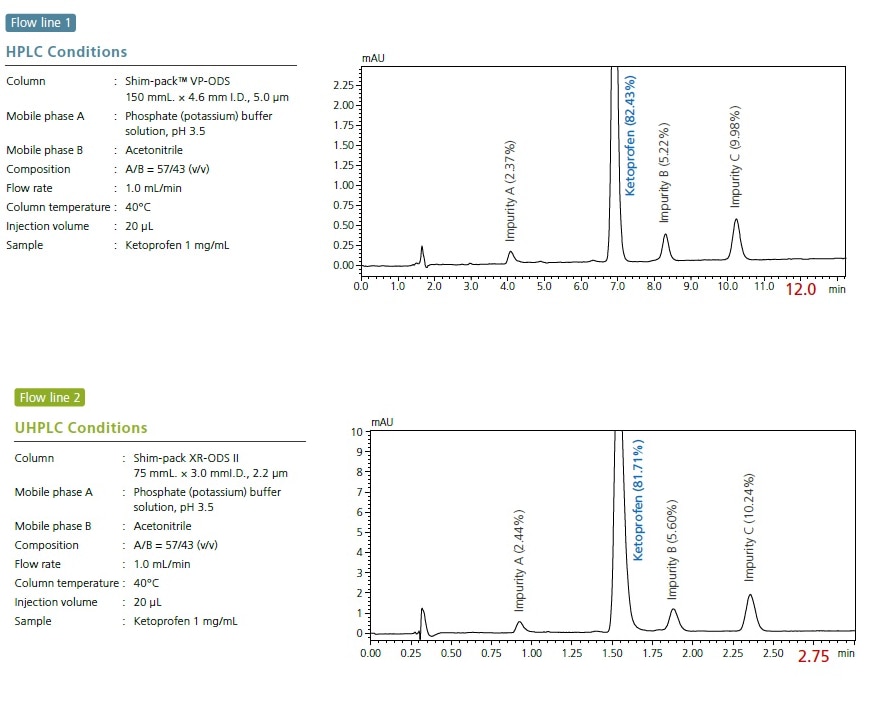

Dual Flow Lines Simplify the Process of Migrating Methods

A single integrated system allows analyses in two flow lines with UHPLC and HPLC delay volumes. In addition to simplifying the transfer of analytical methods for customers using HPLC, it can also streamline the process of converting customers’ analytical methods from HPLC to higher-speed UHPLC.

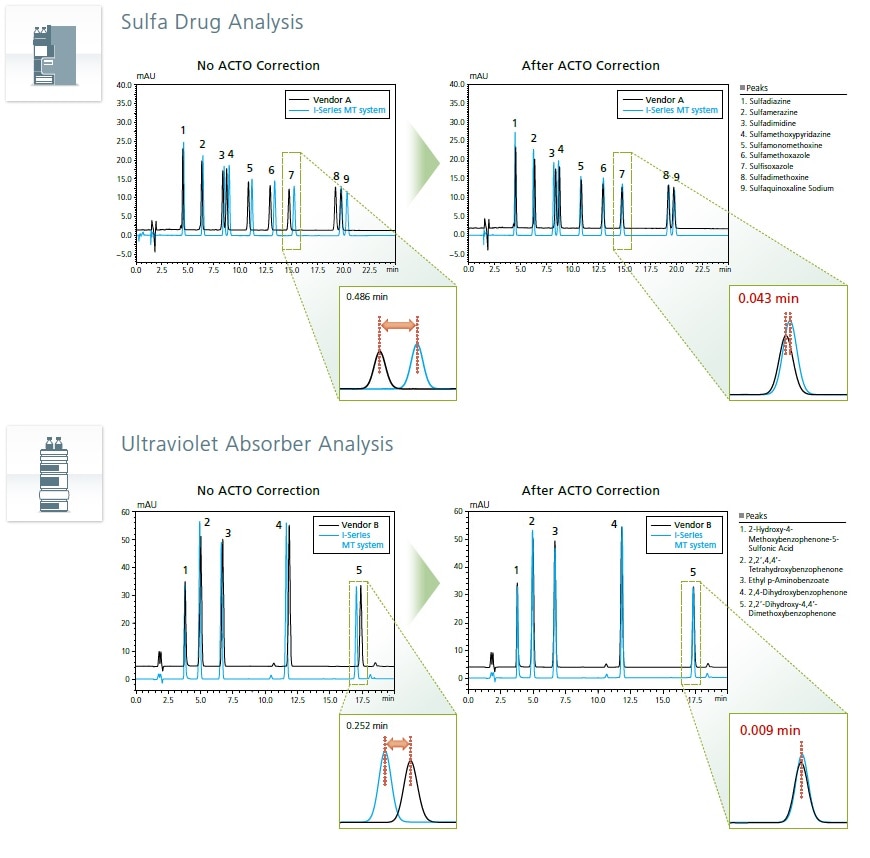

ACTO Function Achieves Higher Reproducibility

The newly developed Analytical Condition Transfer and Optimization (ACTO) function incorporated in LabSolutions™ allows users to transfer injection timings matched to differences in system volumes between instruments, without editing the concentration gradient programs in existing methods.
Achieves Seamless Method Transfer Process

Transfer Methods with a Single Button Operation—ACTO Function
Designed for User-Friendly Operability

Core Technologies That Provide a Solid Foundation for Analysis

Learn more
