Shim-pack Velox LC Columns - Features
HPLC Column
Column Chemistries
Combining highly efficient core shell particle technology with a wide range of surface chemistries provides you with the best opportunity for optimal resolution. With different chemistry characteristics, Shim-pack Velox columns are suitable for use in a wide variety of applications and challenging separations.
SP-C18 | C18 | Biphenyl | PFPP | HILIC | ||
---|---|---|---|---|---|---|
USP Classification | L1 | L1 | L11 | L43 | L3 | |

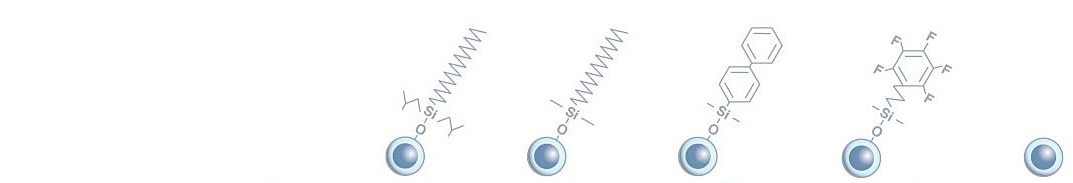

Ligand type | Sterically protected C18 | C18 | Biphenyl | Pentafluorophenyl propyl | None | |
Particle Size (μm) | 1.8, 2.7, 5 | 1.8, 2.7, 5 | 1.8, 2.7, 5 | 1.8, 2.7, 5 | 2.7 | |
Pore size (Å) | 90 | 90 | 90 | 90 | 90 | |
Surface Area | 1.8 μm | 125 m2/g | 125 m2/g | 125 m2/g | 125 m2/g | - |
2.7 μm | 130 m2/g | 130 m2/g | 130 m2/g | 130 m2/g | 130 m2/g | |
5 μm | 100 m2/g | 100 m2/g | 100 m2/g | 100 m2/g | - | |
Carbon Load | 1.8 μm | 7 % | 9 % | 7 % | 4 % | - |
2.7 μm | 7 % | 7 % | 7 % | 4 % | N/A | |
5 μm | 5 % | 5 % | 5 % | 3 % | - | |
End-Cap | No | YES | YES | No | No | |
pH range | 1.0-8.0 | 2.0-8.0 | 1.5-8.0 | 2.0-8.0 | 2.0-8.0 | |
Max Pressure | 1.8 μm | 100 MPa* | 100 MPa* | 100 MPa* | 100 MPa* | - |
2.7 μm | 60 MPa | 60 MPa | 60 MPa | 60 MPa | 60 MPa | |
5 μm | 40 MPa | 40 MPa | 40 MPa | 40 MPa | - |
Column Selection Guide for Different LC Platforms
Column particle sizes and column volumes affect chromatography results significantly if the column configuration does not match the LC system. As column particle size is reduced, or the column volume (ID and/or the length of the columns) decreases, the necessity for a lower dispersion system is increased.
Choosing the optimal column configuration for your LC system allows you to achieve improved chromatography.
The following table summarizes the starting recommendations of column configuration for each LC system.
Prominence |
Prominence-i |
Nexera XR |
Nexera-i |
Nexera X2 |
|
LC System | HPLC | UHPLC-like | UHPLC | ||
---|---|---|---|---|---|
Particle size | 2.7 μm & 5 μm | 2.7 μm | 1.8 μm & 2.7 μm | ||
Column I.D. | 4.6 mm (3.0 mm) | 3.0 mm (2.1 mm) | 2.1 mm | ||
Column Length | 100-250 mm | 50-100 mm | ≤150 mm |

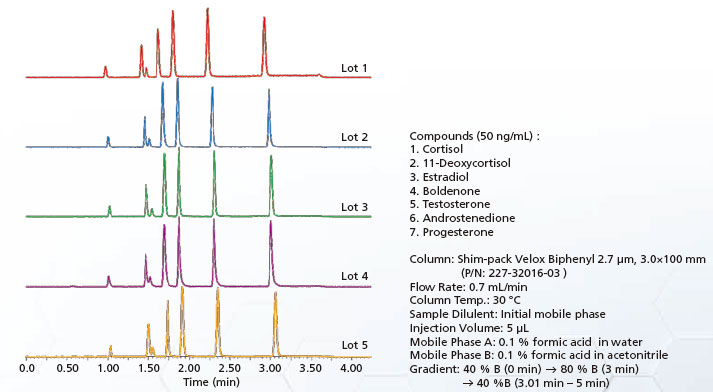

Lot to Lot Reproducibility
We understand that lot to lot consistent performance of columns is required to maximize your laboratory performance.
From one lot to the next, every Shim-pack Velox column you purchase will perform consistently.
