RID-20A

High-Sensitivity Refractive Index Detector

ENQUIRE NOW

Inheriting the stability and extensibility that are the strengths of the Prominence series, the new RID-20A model of differential refractive index detector is designed with a new reference-cell auto-purge feature and validation support function.

Features

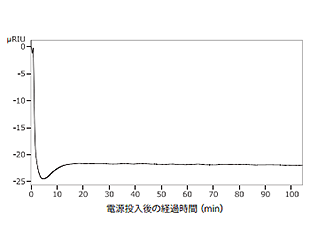

Reduced Stabilization Time and Improved Baseline Stability ：After 30 Minutes Power on

The RID-20A reduces the time to stabilization after power-on dramatically by utilizing dual temperature control for the optical system.
The stable baseline provides...
Short Warm-up Time and Improved Baseline Stability

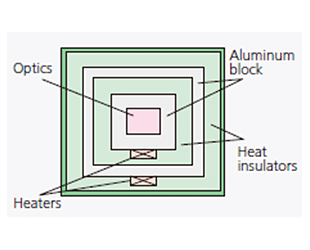

The optical system is housed inside a dual-temperature-controlled block. The temperature of the incoming mobile phase is controlled in two stages; consequently, the stabilization time is significantly shorter...
Shimadzu's Proprietary Technology Supports Highly Sensitive Analysis to Preparative Analysis Applications

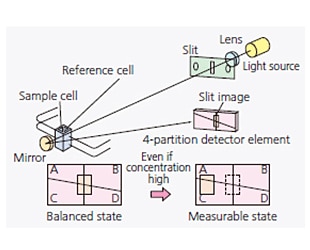

The four-partition photodetector in the RID-20A allows a wide refractive index range (0.01 to 5000 μRIU). The single detector supports all applications from highly sensitive measurements to preparative measurements...

Learn more
