LCMS-8040

Liquid Chromatograph Mass Spectrometer

Add Bookmark

LCMS-8040

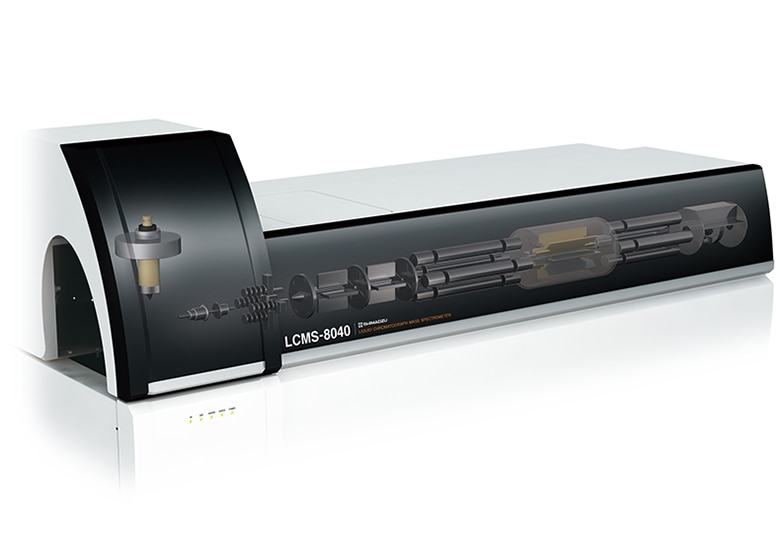

The LCMS-8040 was designed to provide significantly higher sensitivity while maintaining the high speed offered by the LCMS-8030. Ultrafast MRM transition speeds, up to 555 MRMs per second (dwell times of 1 msec and pause times of 1 msec) are achieved. In addition, the LCMS-8040 features the polarity switching at 15 msec and high speed scanning rate of 15,000 u/sec. By incorporating newly improved ion optics UF-Lens™ and UFsweeper™ II collision cell technology, the LCMS-8040 provides higher multiple reaction monitoring (MRM) sensitivity. This higher sensitivity expands the potential range of LC/MS/MS applications.



LC-MS basic guide

Features

  • LCMS-8040
    Exceptional Durability

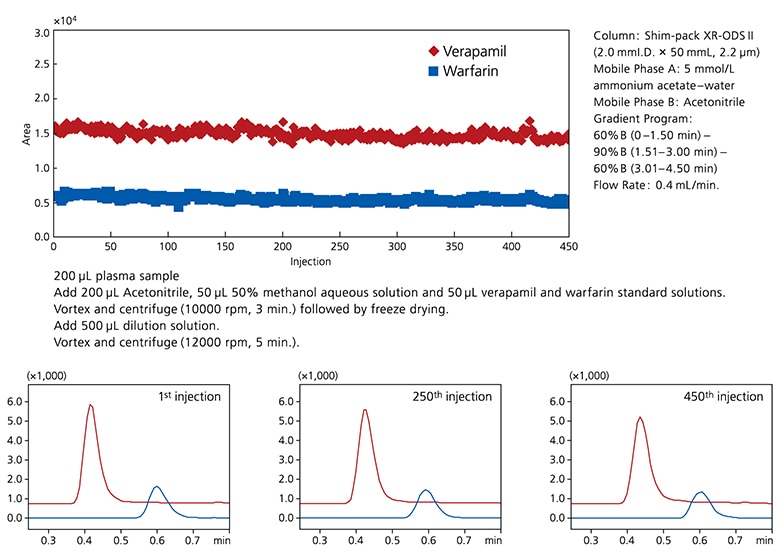

    Blood plasma samples were spiked with verapamil and warfarin, and then protein precipitation was carried out according to the pretreatment flow indicated below.
Learn more

Videos

  • LCMS-8040 Triple quadrupole LC/MS/MS

    • Triple Quadrupole LC-MS/MS

    The LCMS-8040 features the polarity switching at 15 msec and high speed scanning rate of 15,000 u/sec. By incorporating newly improved ion optics UF-Lens™ and UFsweeper™ II collision cell technology, the LCMS-8040 provides higher multiple reaction monitoring (MRM) sensitivity. This higher sensitivity expands the potential range of LC/MS/MS applications.

Learn More
