Peripheral Equipment
ICPE-9800 Series - Options
Multitype ICP Emission Spectrometers
Peripheral Equipment
AS-10 Autosampler
For automatic analysis of 60 samples
(P/N 211-93680-58)
Multiple samples can be analyzed successively. The turntable results in a short path length for sample injection, which can reduce the rinse time.
Vials: 60 15-mL vials
8 50-mL vials
Size: W290 × D508 × H300 mm (excluding arm)
Power supply: Single-phase 100–240 V, 50/60 Hz, 50 VA
Note: Requires a Power Cord.
Optional parts for organic solvent samples
・Additional Rinse Port Kit (P/N 211-94072-41)
・Probe for Organic Solvents, AS-10 (P/N 046-00093-97)
ASX-280 Autosampler
For automatic analysis of 120 samples
(P/N 211-94412)
Vials: 10 50-mL vials (standard samples) or 120 14-mL vials
80 20-mL vials (rack sold separately)
42 50-mL vials (rack sold separately)
Size: W355 × D550 × H620 mm(include sample probe)
W90 × D180 × H60 mm (rough dimensions of power supply unit)
Power supply: 100-240 V AC, 47-63 Hz, 1.9A
Weight: 8.1 kg (main unit)
Note: Requires an ASX Connection Kit ICPE-9800.
ASX-560 Autosampler
For automatic analysis of 240 samples
(P/N 211-94230-01)
Vials: 10 50-mL vials (standard samples) or 240 14-mL vials
160 20-mL vials (rack sold separately)
84 50-mL vials (rack sold separately)
Size: W580 × D550 × H620 mm (include sample probe)
W90 × D180 × H60 mm (rough dimensions of power supply unit)
Power supply: 100-240 V AC, 47-63 Hz, 1.9 A
Weight: 11.7 kg (main unit)
Note: Requires an ASX Connection Kit ICPE-9800.
Cooling Water Circulator
(P/N 211-92962-41)
Used to cool the main unit, the cooling jacket, and the ultrasonic nebulizer.
Size: W377 × D500 × H615 mm
Power supply: AC 200 V–230 V, 50/60 Hz, 2 kVA
Weight: 43 kg
Note: A Chiller Connection Kit, or a Chiller Connection Kit, UAG is necessary.
Note: Two hoses (10 m) are included in the connection kit. One is for the supply of cooling water, the other for draining water.
For high-sensitivity analysis of As, Se, etc.

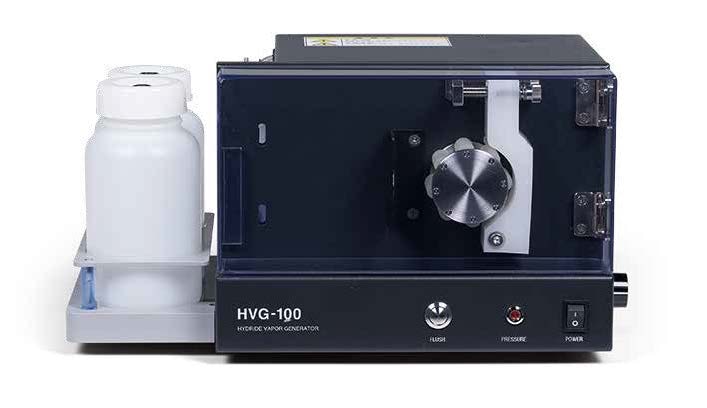

Hydride Generator HVG-100
(P/N 208-00900-41 to 58)
Note: HVG-ICP KIT, HVG-100 (P/N 211-96918-58) and drainage pump are required.
For high-sensitivity analysis of Na or K in organic solvent samples
Argon and Oxygen Gas Mixture Supply Unit (special order)
Normally, the ICPE-9800 does not require oxygen gas to be added to the plasma when organic solvent samples are measured. However, when trace amounts (ppb levels) of elements such as Na and K in organic solvent are measured, carbon can cause background problems. A four-layered torch is useful for reducing such problems by introducing oxygen safely into the plasma.
Peristaltic Pump
(P/N 211-92430-41)
Installed internally, with up to four channels
Size: W121 × D174 × H131 mm (excluding protrusions)
This pump is also used with the automatic internal standard addition kit.
For adding internal standards automatically to ensure accurate analysis with ease
Automatic Internal Standard Addition Kit
(P/N 211-92883-41)
This kit is used for in-line mixing of a sample solution to be measured and an internal standard element solution and for introducing the mixture into the ICP system.
Note: Peristaltic Pump is (P/N 211-92430-41) required.

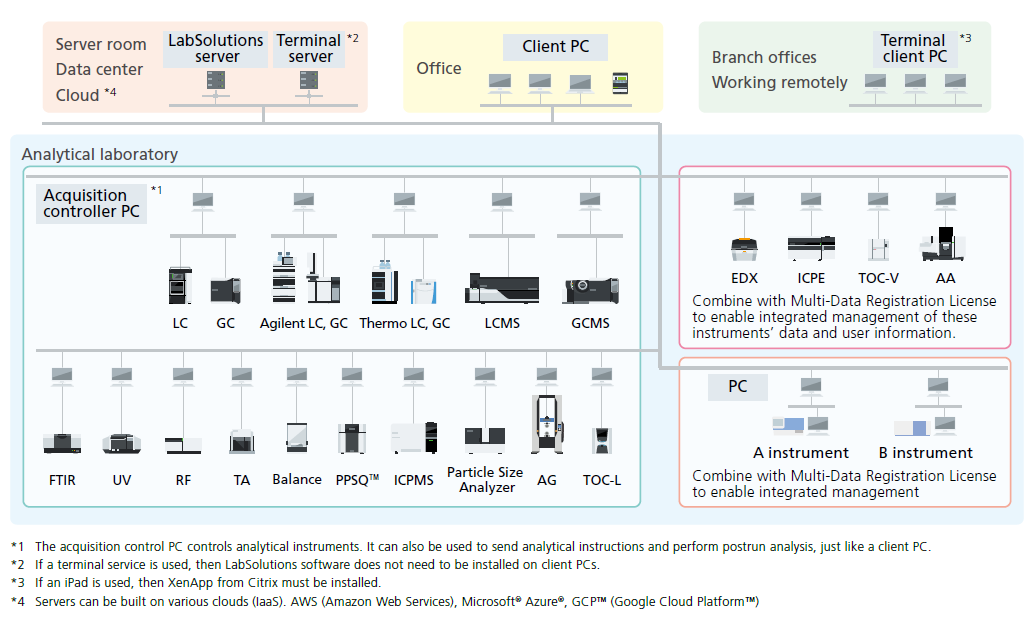

Freely Accessible Analytical Lab Network
The “Multi-Data Register Connection Kit for ICPE” (option) is available to meet regulations for electronic records and signatures, such as FDA 21 CFR Part 11.
The measurement results of HPLC, GC, GCMS, LCMS, UV, FTIR, balance, TOC, thermal analysis, particle size distribution (SALD), and other analyzers in the laboratory can be managed in the LabSolutions server.
