ICPMS-2030
Inductively Coupled Plasma Mass Spectrometer
With its newly developed collision cell and optimized internal structure, the ICPMS-2030 provides superior sensitivity. At the same time, thanks to the adoption of its proprietary mini-torch unit and provision of an Eco mode, the quantity of argon gas needed for analyses has been greatly reduced to the industry's lowest levels. As a result, low running costs are assured. The Development Assistant function of the software automatically sets the optimal analysis conditions for quantitative analysis. Then, after measurements are complete, the Diagnosis Assistant function automatically checks the validity of the necessary data. While reducing the burden on the user, the efficiency of analyses is enhanced and the reliability of the data can be increased. It complies with FDA 21 CFR Part 11.
Features
-

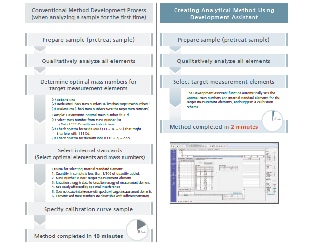

The Development Assistant simplifies the process of developing analytical methods. The Diagnosis Assistant automatically diagnoses spectral interference. Together, they provide analytical results with exceptionally high reliability.
-

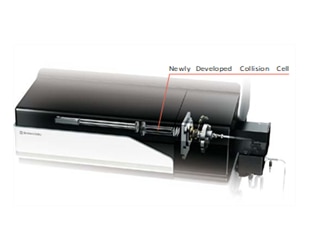

Achieve High-Sensitivity and Low-interference Analyses Using Newly Developed Collision Cell
-

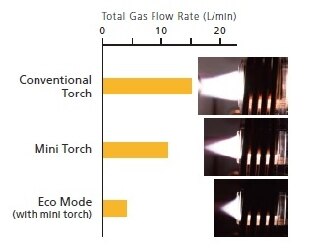

Unique Combination Eco Mode/Mini-Torch Reduces Running Cost by Dramatically Reducing Gas ConsumptionIn addition to lower running costs, the environmentally-friendly mini-torch plasma unit, developed by Shimadzu, minimizes the energy (electricity) ...
-

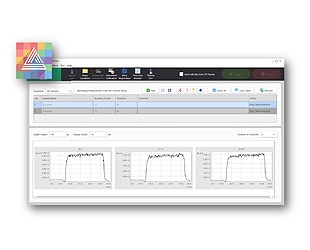

By combining this software with ICPMS-2030 connected to a laser ablation instrument, sample measurement and data output in a format compatible with imaging data analysis software are possible.
Videos
-
ICPMS 2030 Inductively Coupled Plasma Mass Spectrometer -Short Version-
-
ICPMS 2030 Inductively Coupled Plasma Mass Spectrometer
