Multifaceted Evaluation of EV Hollow Shaft

Add Bookmark

Application News

To expand the use of electric vehicles (EVs), reducing the weight of vehicle bodies is necessary to increase the distance that they can travel. Reducing the weight of the shaft is particularly important because, in addition to improving the distance that can be traveled, this weight reduction is expected to improve the responsiveness of the motor by reducing the inertia. Here, a multifaceted evaluation of the material properties of a radial forging product, produced by a new forging technology, was performed.

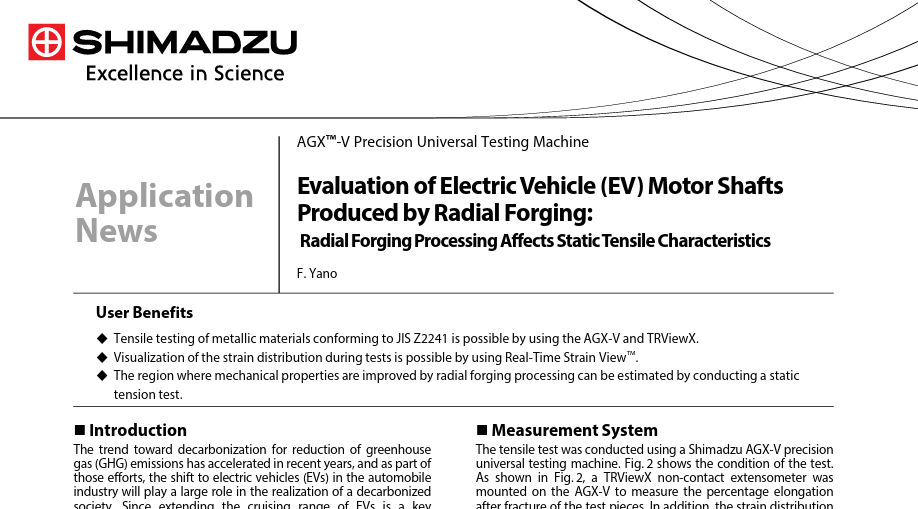

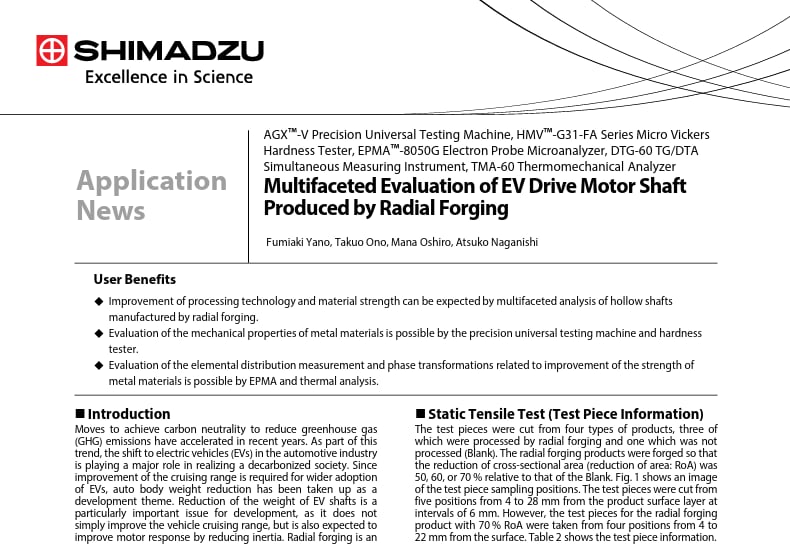

Application News: Multifaceted Evaluation of EV Drive Motor Shaft Produced by Radial Forging

1. Static tensile tests

Four types of test pieces were produced: three types cut from a radial forging product, and one cut from unforged material (blank product). The radial forging products were forged so that the reductions in cross-sectional area relative to the blank product were 50, 60, and 70 %.



Image of Test Piece Sampling Positions

Image of Test Piece Sampling Positions

Test Piece Information
Test Piece Material SCr420
Test Piece Dimensions Thickness: 2.5 mm, width: 11 mm, length of the parallel portion: 56 mm
Types of Test Pieces

Test piece (1) Blank product test piece
Test piece (2) Radial forging (RoA 50 %)
Test piece (3) Radial forging (RoA 60 %)
Test piece (4) Radial forging (RoA 70 %)

Test Piece Sampling Positions

4, 10, 16, 22, and 28 mm
* For test piece (4) only: 4, 10, 16, 22 mm

Condition of Test

The TRViewX non-contact extensometer was installed to measure the failure elongation of the test piece. To accurately measure Young’s modulus and Poisson’s ratio, a biaxial strain gauge was fixed to the reverse side of the test pieces.












  • Image

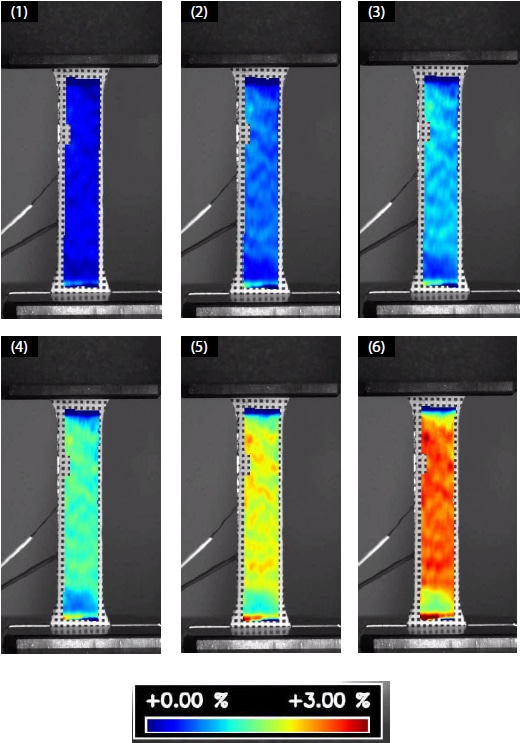

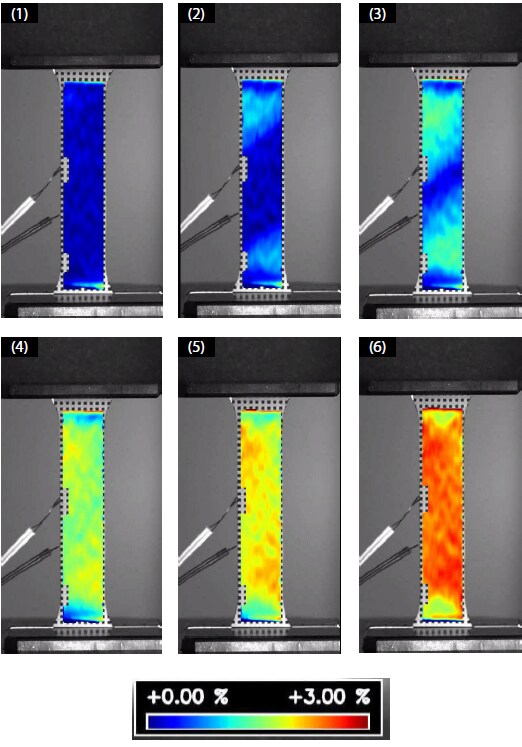

Strain Distribution of Radial Forging in Tensile Test (Left: Movie) (Right: Image)



  • Image

Strain Distribution of Blank in Tensile Test (Left: Movie) (Right: Image)

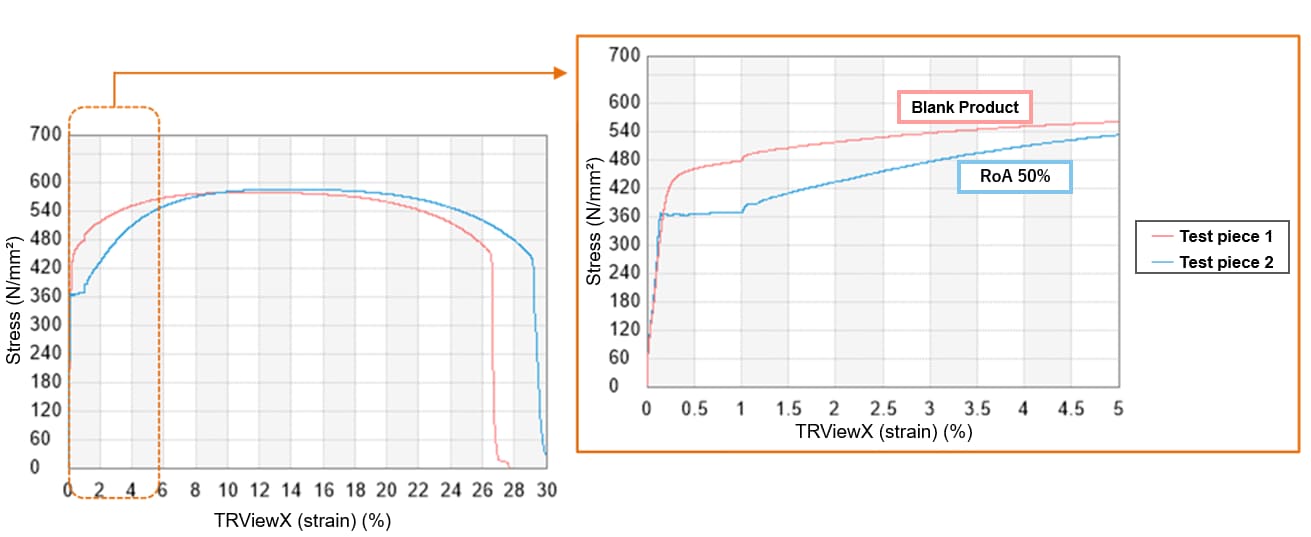

A yield point did not appear for test piece (1), the blank test piece, but for radial forging products, a yield point appeared as in test piece (2). In addition, there was a difference in the strain distribution between the blank product and the radial forging product.



Graph


There were differences in the tensile strength and Young’s modulus between the blank product and the radial forging product, but there were almost no differences due to the position from which the test pieces were extracted. The value of Poisson’s ratio was virtually constant, regardless of the position from which the test piece was extracted or whether it was subjected to radial forging. The value of failure elongation was virtually constant up to 16 mm from the surface layer, regardless of whether radial forging was applied. On the other hand, for test pieces (2) and (3), the failure elongation was reduced at 22 and 28 mm. From these results, it was possible to determine the processed area where excellent properties were found.


Application and Related Product

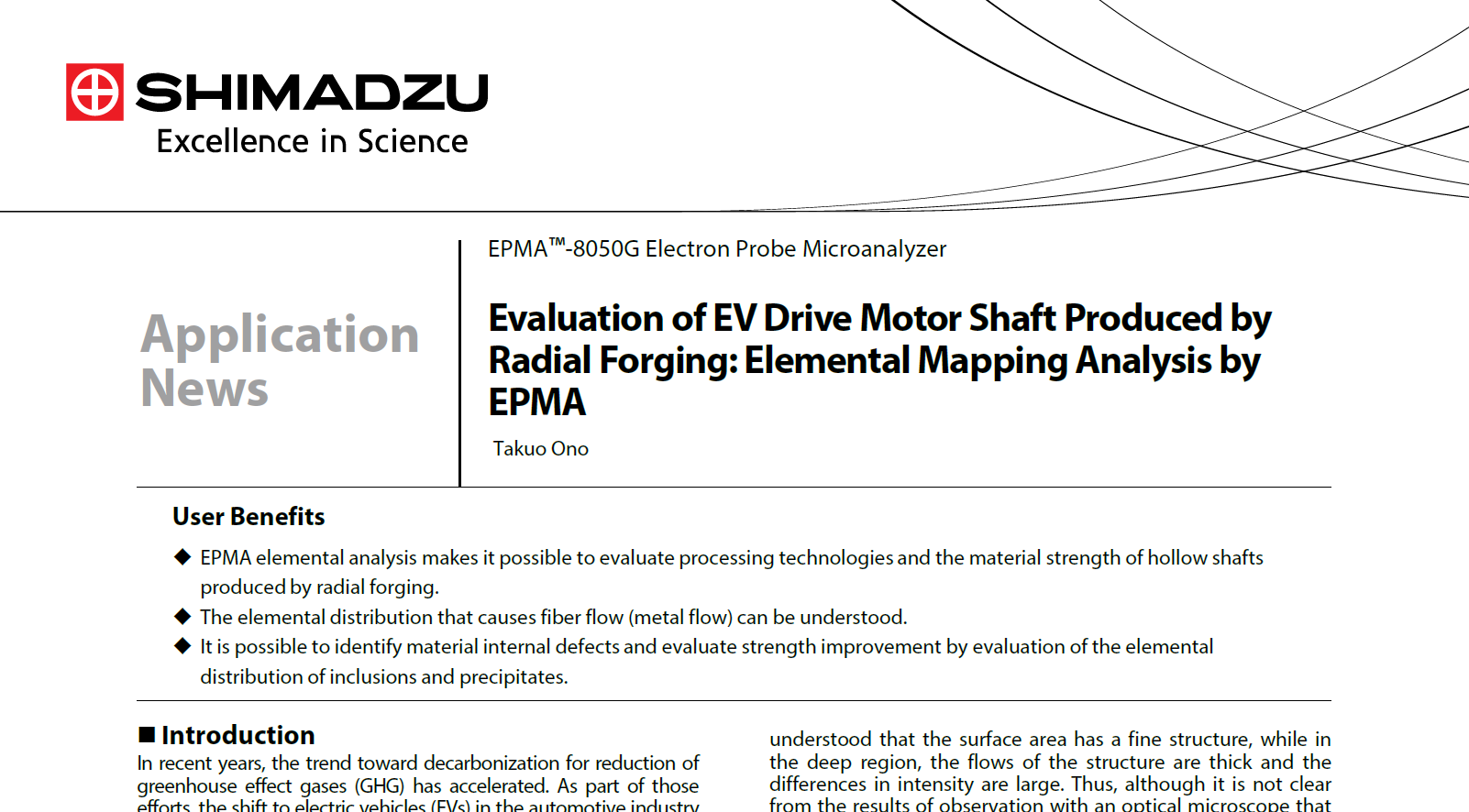

2. Visualization of forging flow lines and element analysis

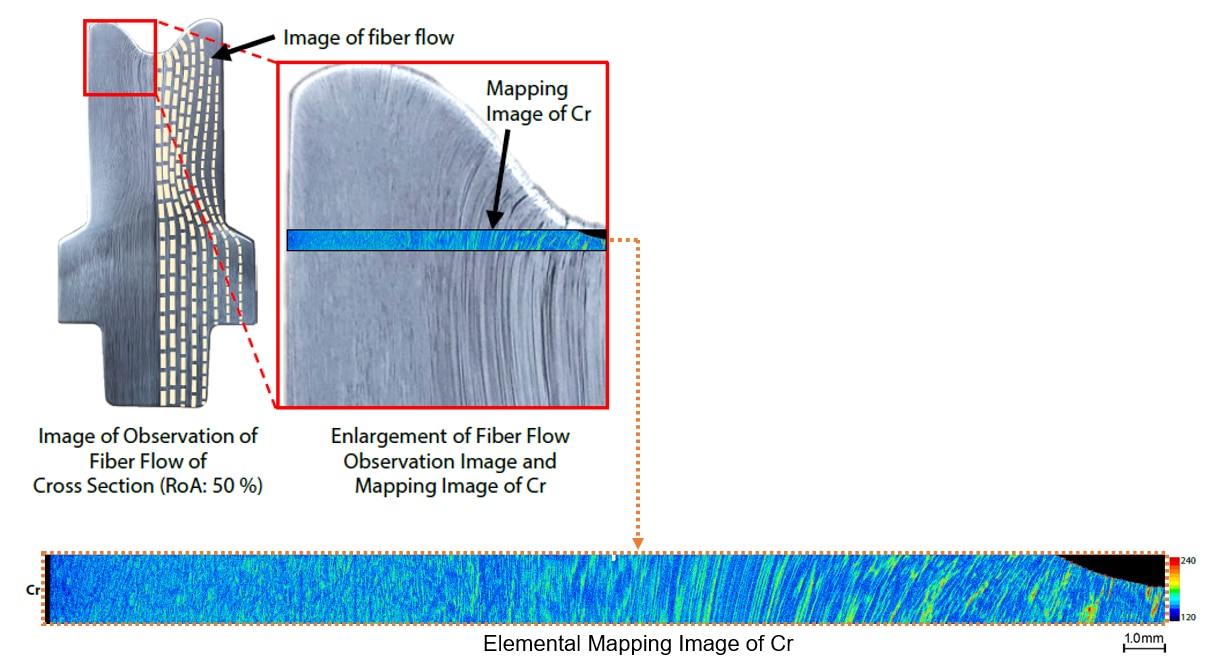

Superimposing the optical observation images of the forging flow lines, obtained by chemically treating the cross-section of the motor shaft that was forged by radial forging, and the EPMA element mapping images showed that the flow of the forging flow lines matched the element distribution of Cr very well. The forging flow lines that were refined by the forging operation were unclear when observed with an optical microscope, but it was possible to clearly observe them with the high resolution of EPMA.


Related Product

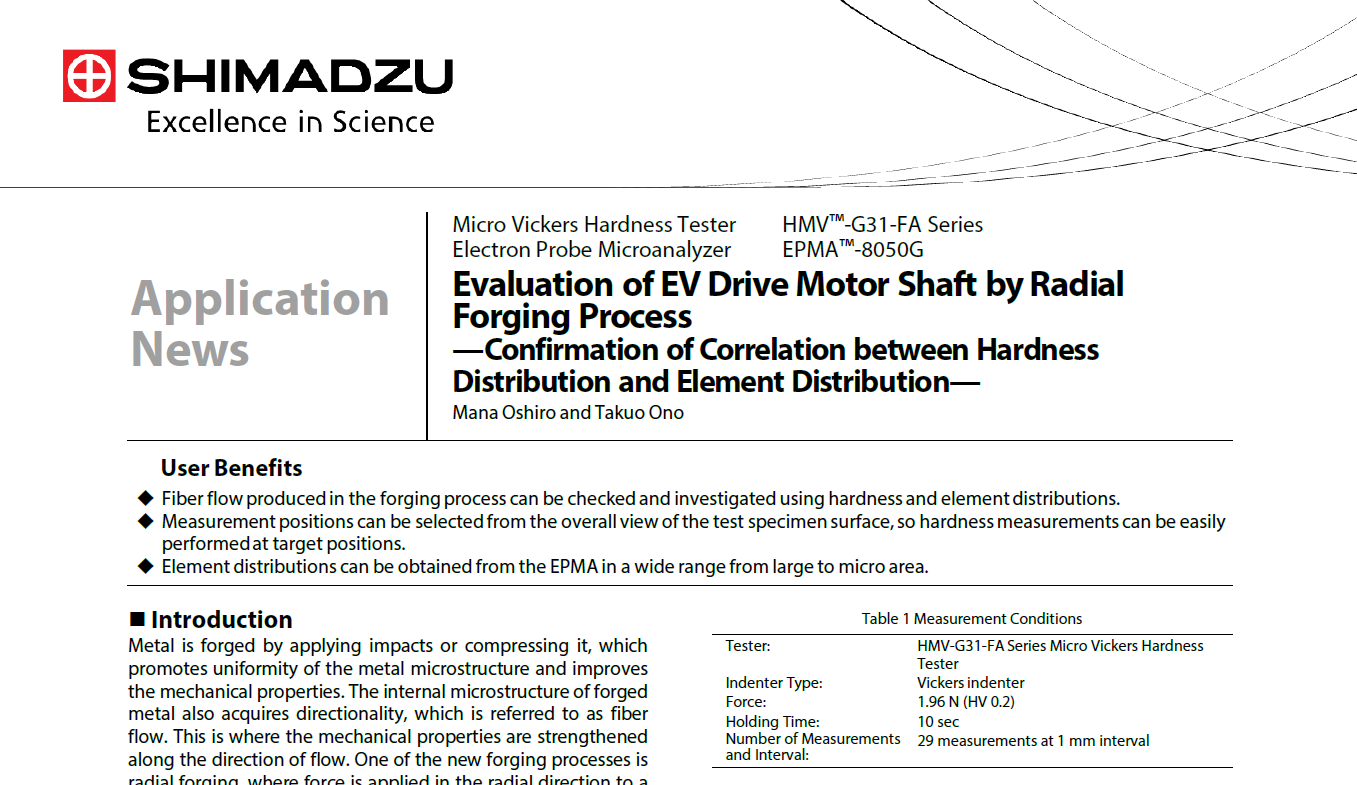

3. Hardness tests and element mapping

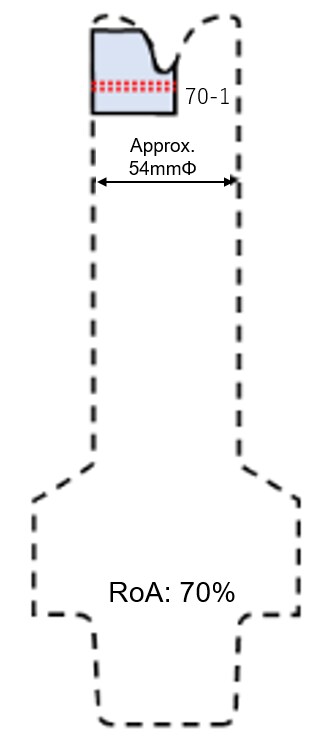

Test Piece Sampling and Measurement Positions

Test Piece Sampling Positions and Measurement Positions

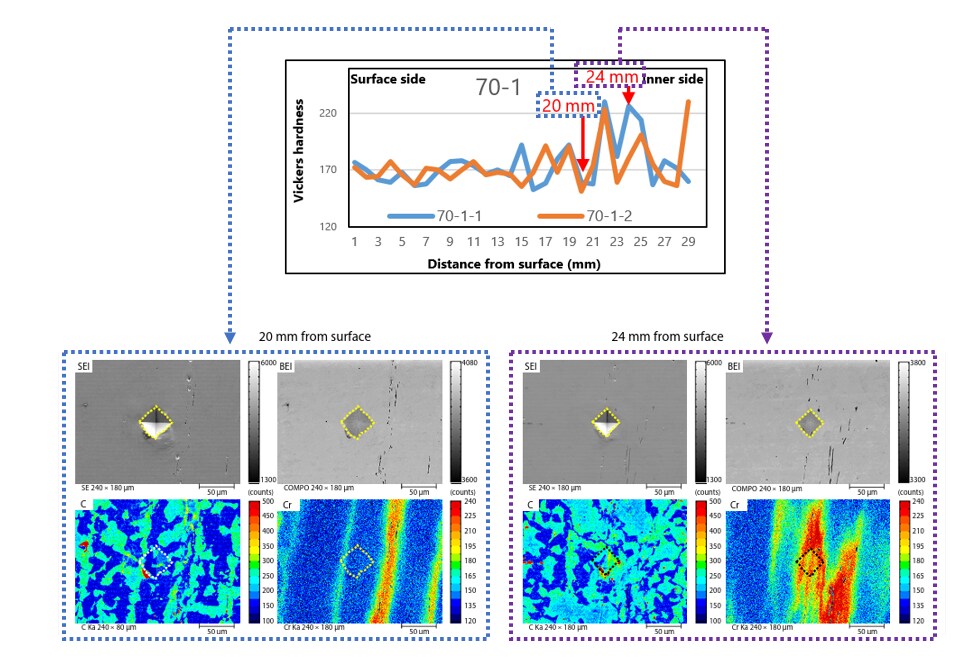

Hardness measurements were taken on the radial forging product along the red dotted lines. The following table shows the hardness test measurement results. The greater the distance from the surface, the greater the variation in the results. Therefore, the points where the hardness measurements were large (24 mm from the surface) and small (20 mm from the surface) were enlarged and element mapping analysis was performed in the vicinity of these points. It was determined that a deviation in the distribution of C and Cr had affected the hardness.















Iamge


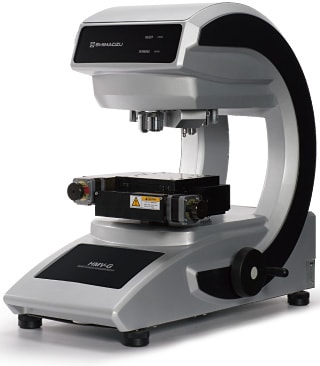

Application and Related Product

4. Evaluation of the microstructure due to the forging process


Test Piece Sampling Positions and Measurement Positions


Element mapping analysis was performed by EPMA within the red rectangle on the cross-section of the radial forging product. For Si, Cr, and Mn, a flow in a direction parallel to the surface was found, which matched the flow of the forging flow lines. Also, a more refined microstructure was found in the vicinity of the surface compared to the interior. Reflected electron images were obtained in which the crystal directions were reflected in the images, from which it was determined that a fine crystalline structure was formed by the forging process. When the C distribution was enlarged, a layered fine pearlite (microstructure in which ferrite (α-iron) and cementite (Fe3C) are separated) microstructure was formed. Looking at the distribution of Cr, it was found that grain boundaries had formed. In particular, the Cr high-concentration parts at the grain boundaries coincided with those of the C and N distributions, so it is considered that carbides and nitrides had formed. S had the same distribution as the parts where Mn had a high concentration, and it was found that MnS inclusions were formed. In addition, the shape and size tended to be different near the surface and in the interior. It is considered that changes were caused by the forging process and thermal changes.






Application and Related Product

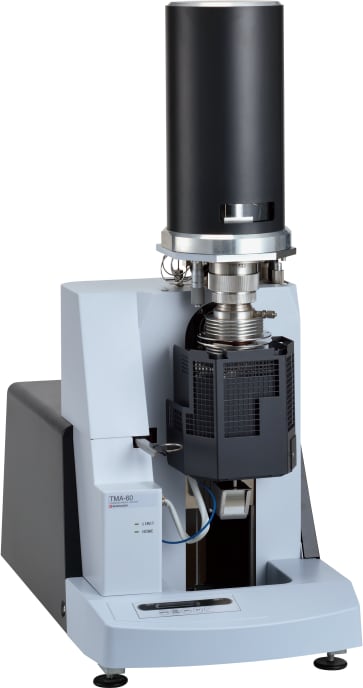

5. Evaluation of the transformation temperature by thermal analysis


TMA curve for RoA 70 %



TMA measurements were taken on the radial forging product. From the TMA curve, the inflection point near 790 ºC is thought to be a transformation temperature. It is considered that when the forging process is performed at a temperature higher than the transformation temperature the microstructure is homogenized. In contrast, when the forging process is performed at a temperature lower than the transformation temperature, the microstructure becomes refined. Therefore, it is possible to draw a line between microstructure homogenization and refinement.
