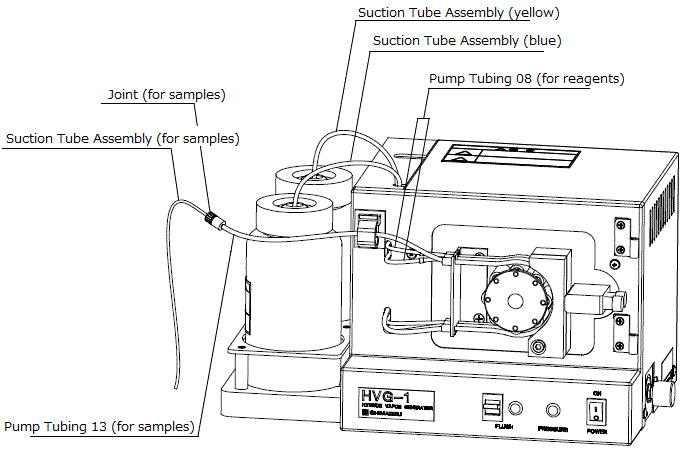

Parts for Hydride Vapor Generator: HVG-1
Last update: August 29, 2024
| Name | P/N | Appearance | Qty | Remarks |
|---|---|---|---|---|
| Suction Tube Assembly, Yellow |
206-18036-01
|
|
1 | For NaBH4, partial yellow coating on the tube |
| Suction Tube Assembly, Blue |
206-18036-02
|
|
1 | For HCl, partially blue coating on the tube |
| Pump Tubing 08, for Reagents |
208-90038-08
|
|
12 | Orange bridge on the tube |
| Pump Tubing 13, for Samples |
208-90038-13
|
|
12 | Blue bridge on the tube |
| Joint, for Samples |
206-17826-02
|
|
1 | Has a different inner diameter, etc. from the joint for reagents. |
| Joint, for Reagents |
206-17826-01
|
|
1 | Has a different inner diameter, etc. from the joint for samples. |
| Reaction Coil Assembly |
206-18037
|
|
1 | |
| Absorption Cell |
206-77607
|
|
1 | |
| Suction Tube Assembly, for Samples |
206-18036-03
|
|
1 |
